Mitutoyo Laser Scan Micrometer LSM-902/6900 - 544-496A, 1.5 x 25mm range, repeatibility 0.000002" 0.05 *2um
Roll over image to zoom in Click on image to zoom
Mitutoyo Laser Scan Micrometer LSM-902/6900 - 544-496A, 1.5 x 25mm range, repeatibility 0.000002" 0.05 *2um

Mitutoyo Laser Scan Micrometer LSM-902/6900 - 544-496A, 1.5 x 25mm range, repeatibility 0.000002" 0.05 *2um

MitutoyoSKU: 544-496A
List price: £9,500.00 Offer price: £6,995.00 Excluding VAT
  • Non-contact laser-based measuring system, mainly for outside diameter measurement.Suitable for delicate or moving workpieces.
  • Accuracy of ±0.5?m in the ø0.1 - ø25mm range can be achieved. It is highly suitable suited for pin gage measurement.
  • Narrow range accuracy of ±(0.3+0.1 D)?m for high precision measurement.
  • Ultra-high repeatability of ±0.05?m.

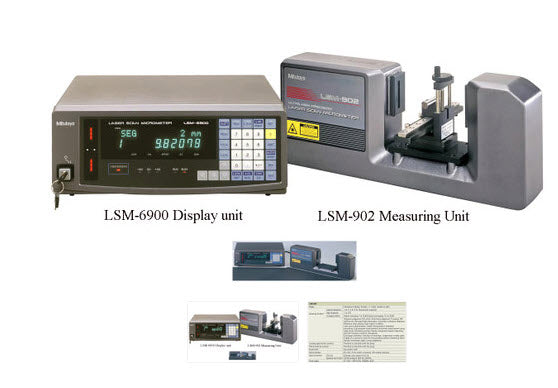

  • The system consists of a measuring unit (LSM-902) and a display unit (LSM-6900)
  • Calibration gage set (ø1.0, ø25.0): No.02AGD180
  • Workstage : No.02AGD270
  • Adjustable workstage : No.02AGD280
  • Digimatic code output unit (2-ch) : No.02AGC840
  • 2nd I/O analog interface unit : No.02AGC880
  • BCD interface unit : No.02AGC910
  • Printer & cable set (120V AC C-type plug) : No.02AGD600B
  • Printing paper TP411-28CL / 1Pack = 10pcs : No.223663
  • Digimatic code output cable : No.936937
  • Foot switch : No.937179T


Specifications:

Order No 544-496A - Includes Both LSM-6900, LSM-902
Measuring Region Area 0.6" x 1.0"
Measuring Region Area mm*6 1.5 x 25mm
Measuring Range 0.004 - 1.0" / 0.1 - 25mm
Repeatability*1 0.000002" 0.05 *2um
Number of Scans 800/sec
Laser Scanning speed 2240"/sec (56m/sec)
Linearity, Whole Range*1 ± 0.00002" (±0.5µm)*3
Linearity, Small Range*1 ± (0.000012 + 0.0001 ?D)" [?D:inch]*3 *4 ±(0.3 + 0.1 ?D)µm [?D:mm]*3*4
Range, Reading 0.00001 - 0.0005" 0.01-10um
Positional Error*1*5 0.000020" 0.5um
