- Contact faces are ground and lapped.
- They are of regular length with two differently sized, 90 ° V-grooves.

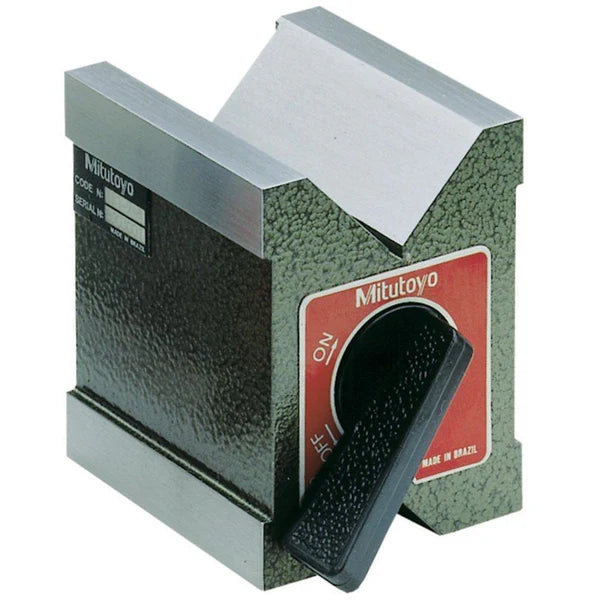

This Magnetic V-Blocks are a regular-length type and offer you the following benefits:
- You can use them for holding ferromagnetic cylindrical parts for scribing, adjusting, testing, etc.
Key Specifications
Length [mm]: 98
Width: 70 mm
Max. receiver for workpiece V-groove 1 Ø: 50.8
Max. receiver for workpiece V-groove 2 Ø: 25.4
Magnetic force: 980 N
Height: 95 mm
Mass_ 4 kg
Parallelism between V-groove and all side surfaces: 10 µm
Perpendicularity between V-grooves and back surface:
181-246 21 µm
Delivered:
Individually (181-246)
Inch-Metric: Metric
