Mitutoyo Ratchet Thimble Micrometer 25-50mm, 0,001mm 102-708

Roll over image to zoom in Click on image to zoom

Mitutoyo Ratchet Thimble Micrometer 25-50mm, 0,001mm 102-708

Name: Mitutoyo Ratchet Thimble Micrometer 25-50mm, 0,001mm 102-708
Brand: Mitutoyo
SKU: 102-708
Price: 89.0 GBP
Availability: InStock

MitutoyoSKU: 102-708

Price:

£89.00 £128.00

Quantity:

Optional Services

UKAS Accredited Calibration Supplied with a UKAS calibration certificate.

Professional Laser Marking by Automator Lasers Add your Gauge ID, asset number or company name.

Recommended Alternative

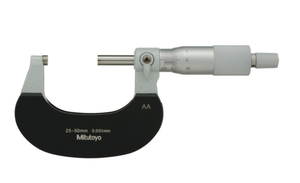

Mitutoyo Outside Micrometer with Heat Ins. Plate 25-50mm, Ratchet, 0,001mm 102-312 SKU: 102-312 View recommended alternative

Overview Technical Information Applications Videos & Documents

Mitutoyo; Ratchet Thimble Micrometer

A Mitutoyo non-digital micrometer with a combined ratchet thimble/speeder to guarantee repeatable measurement. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions.

All images are for representation only.

Range: 25-50mm
Resolution: 0.001mm
Accuracy: ± 0.002mm
Parallelism: 0.002mm
Flatness: 0.006mm
Measuring Force: 5-10N
Measuring face: Carbide-tipped, micro-lap finish
Measuring Spindle: With spindle lock, 6.35mm diameter
Spindle pitch: 0.5mm
Scale: Thimble and sleeve satin chrome finish, ø18mm

No application information is currently available.

No videos or documents are currently available.
