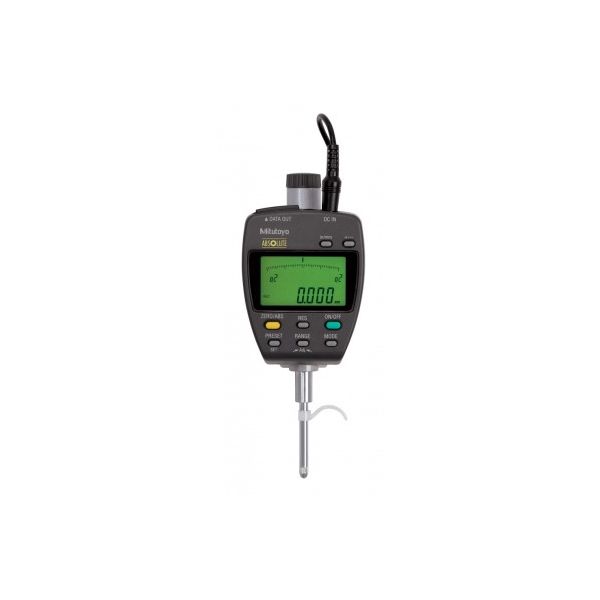

Features
- With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on.

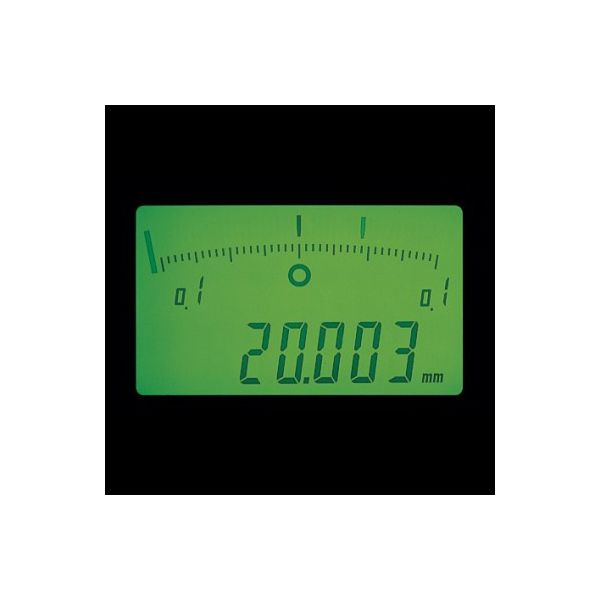

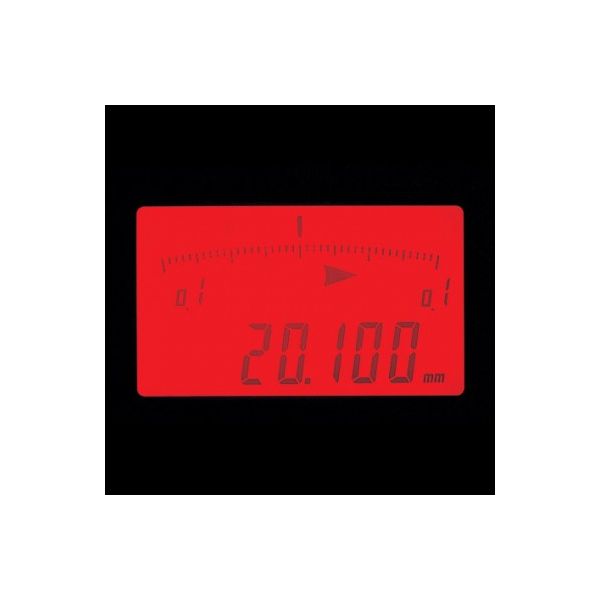

- GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
- An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed.
- With SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm/0.001mm or .00005”/.0001”/.0005”/.001”/0.001mm/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: 1.8N/2.3N* or less (*50mm range models)
Power supply: 9V DC (via AC adaptor)
Function
Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value
hold, Runout measurement, Resolution switching, Counting
direction switching, Power ON/OFF, Data output,
inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error,
Over-flow error, Tolerance limit setting error
No technical information is currently available.
No application information is currently available.
