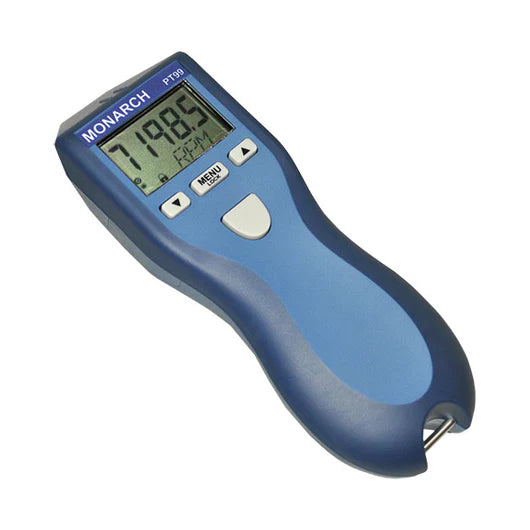

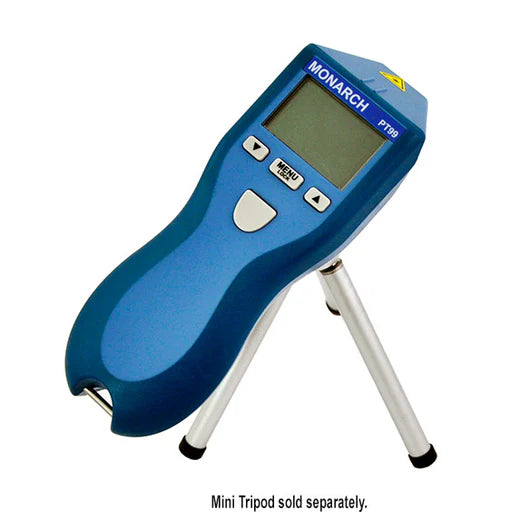

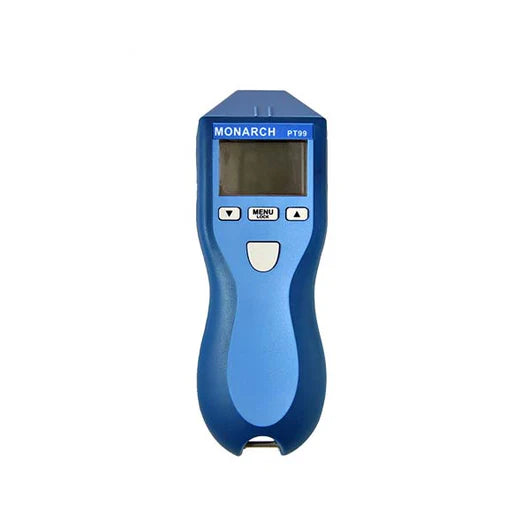

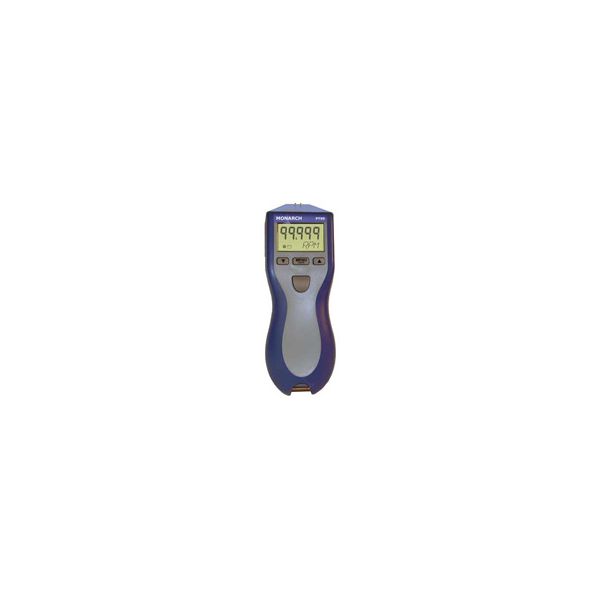

Pocket Tach 99 Tachometer
Pocket Tach 99 is a digital battery-powered portable non-contact optical tachometer (red LED) which operates up to 36 inches from a reflective tape target using an LED light source.
The ergonomic design allows safe direct line-of-sight viewing of both the rotating target and the display at the same time while providing a no-slip rubber surface for single hand operation.
Display: 5 Digits 5 Alpha-numeric LCD
Range: 5 to 99999 RPM
Description = PT-99 Pocket Tach 99 basic non-contact optical tachometer with 12 of T-5 Reflective Tape
| Display | 5-digits, 5 alpha-numeric LCD |
| Speed Range |
5 to 99,999 RPM |
| Accuracy |
±0.01% of reading or ±1 digit |
| Resolution | Autoranging: 0.001 to 1.0 RPM |
| Fixed | 1 digit RPM |
| Operating Range | 2 in. to 36 in. [5 cm to 91.44 cm], ±45° from perpendicular |
| Memory | Maximum, Minimum, and Last Reading |
| Power | Two (2) AA 1.5 Vdc batteries (60 hours) |
| Environmental | Temp: 5° to 40 °C (40° to 105 °F) RH: 80% RH up to 31 °C (88 °F) |
| Dimensions (HxWxD) | 6.92 x 2.4 x 1.6 in. [17.58 x 6.10 x 4.06 cm] |
| Weight | 7 oz. [210 g] |
No technical information is currently available.
No application information is currently available.
