Moore & Wright Micrometer Heads MHM-543M 0-25mm

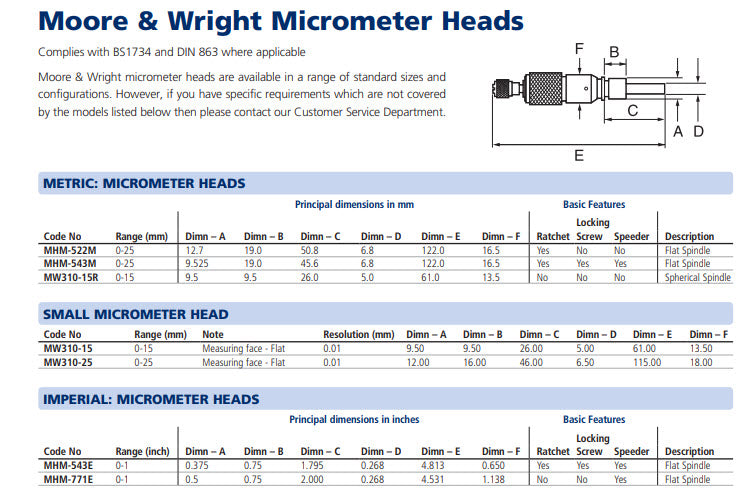

Moore & Wright Outside Micrometer 200 Series are devised for universal use on both micro gaging in workshop applications and improvised attachment on machine tools, microscope, fine-tuning on micro staging as well. The micrometer heads are built and designed based on Moore & Wright Outside Micrometer 200 Series. Complies with BS1734 and DIN 863 where applicable Moore & Wright micrometer heads MW310 are available in a range of standard sizes and configurations.

With manual interpolation and coated Vernier scale, you can choose up to 6 different models which vary based on range and mechanism. The lockable ratchet (with 'Speeder' initial) as featured on the 521 and 522 Models will allow you to have both quick adjustment and precision locking which are commonly required in machine tools and microscopy applications.

Moore & Wright Outside Micrometer 200 Series Features:

• High quality for universal use on both micro gaging in workshop application and improvised attachment on machine tools

• 0-25mm or 0-1" range, resolution 0.01mm / 0.001"
• Satin-chrome scale
• Complies with BS1734 and DIN 863
