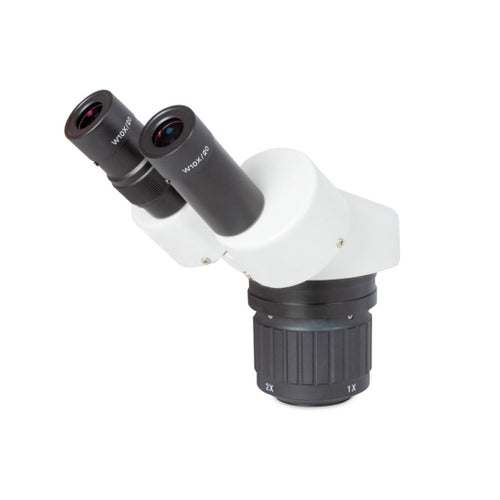

A stereo microscope head based on a Greenough optical system. The 2X/4X magnification changer optics is meant for OEM purposes or the integration in experimental setups. The binocular head with 45° inclination is adjustable in a range of 54-75mm Interpupillary distance. The Widefield eyepieces WF10X/20mm provide a quick sample overview. A working distance of 95mm gives freedom for manipulation work in the magnification steps of 20X/40X.
| Observation tube | Binocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Interpupillary distance | 54-75mm |
| Diopter adjustment | On left tube, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Objectives system | Turret changer |
| Objectives | 2X-4X |
| Working distance | 95mm |
| Accessories included | Dust cover |
| Dimensions LxWxH | 237x170x335mm |
| Weight Net | 1.2kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
