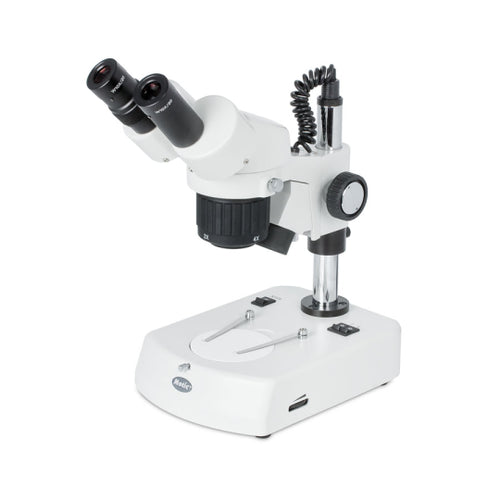

A stereo microscope for basic microscopical work. The magnification changer delivers clear images of biological samples with a 20X/40X total magnification for school and private environments. A working distance of 95mm gives enough space for inspection and preparation work on plants, insects or technical pieces. The SFC-11C-N2GG is a small solution for education and hobbyists.
| Observation tube | Binocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined, 360º rotating |
| Interpupillary distance | 54-75mm |
| Diopter adjustment | On left tube, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Objectives system | Turret changer |
| Objectives | 2X-4X |
| Working distance | 95mm |
| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø25mm column and Ø74mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |
| Incident illumination | Halogen 12V/15W with intensity control |
| Transmitted illumination | Halogen 12V/10W with intensity control |
| Transformer | Internal |
| Power supply | 220V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates and blue filter |
| Dimensions LxWxH | 237x170x335mm |
| Base | 237x170mm |
| Column/Arm | Height 210mm, Ø25mm |
| Weight Net | 6.2kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
