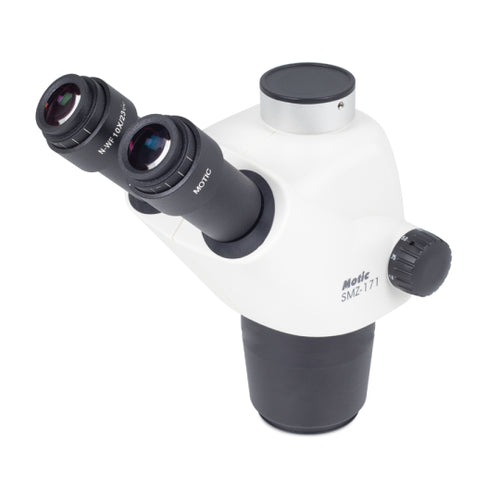

A stereo microscope head based on a Greenough optical system. The parfocal 6.7:1 zoom optics is meant for OEM purposes or the integration in experimental setups. The trinocular head with 45° inclination is adjustable in a range of 52-75mm Interpupillary distance. The Widefield eyepieces WF10X/23mm provide an enlarged sample overview. A working distance of 110mm gives freedom for manipulation work in a standard magnification range of 7.5X-50X. A fixed light split of 50:50 allows observation and documentation at the same time.
| bservation tube | Trinocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 52-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 110mm |
| Accessories included | Dust cover |
| Dimensions LxWxH | 303x239x370mm |
| Weight Net | 1.4kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
