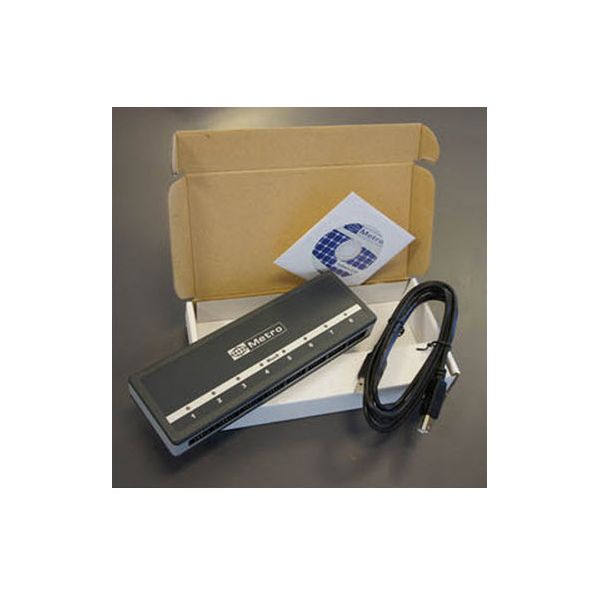

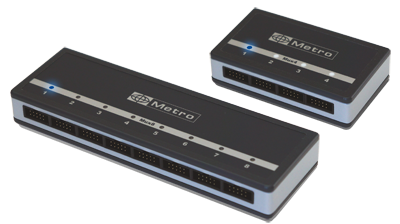

Mux4 USB 18008 Multiplexer, Mux8 multiplexor for 8 instruments

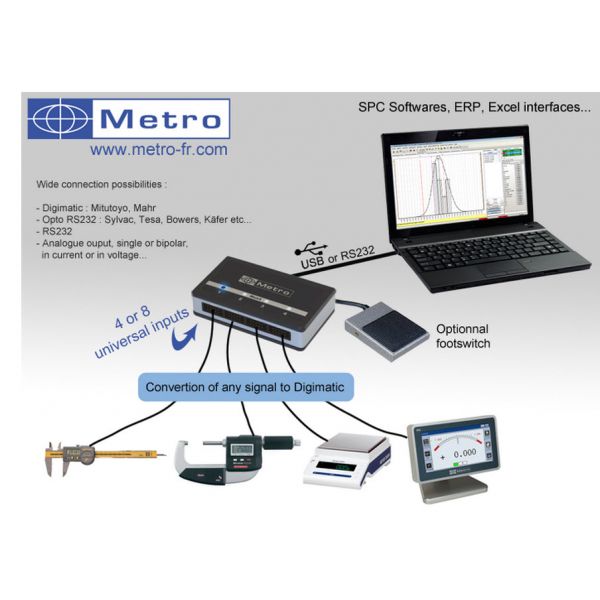

The Mux 4 and Mux 8 multiplexers allow the connection of 1 to 8 measuring instruments (calipers, micrometers, comparators, scales...) with a PC or other similar equipment equipped with a USB port or an RS 232 interface. The Mux 8 is only equipped with an RS 232 port

It supports measuring instruments equipped with the following interfaces:

• Digimatic : Mitutoyo, Mahr
• Opto RS232 : Sylvac, Tesa, Bowers etc..
• RS232
• Analog outputs, single or bipolar, in voltage or in current.

The recognition of the instruments is automatic.

• One RS 232 port for connection to a PC (only on Mux8)
• One USB port for connection to a PC
• 4 or 8 inputs for instruments.

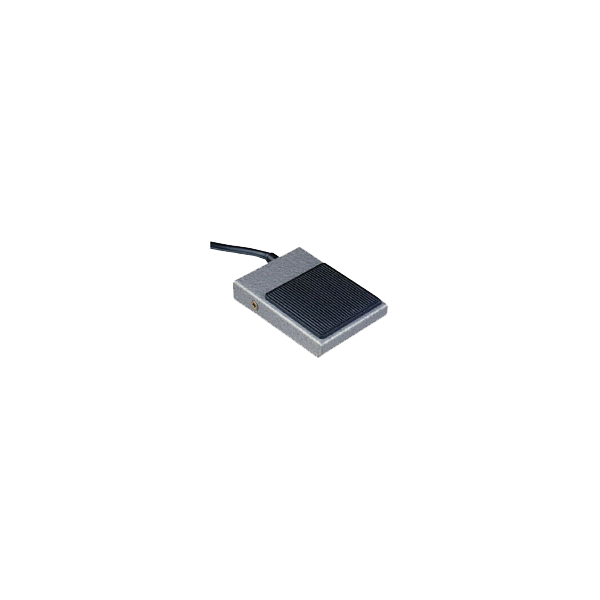

• 1 external control input (pedal).
• Storage temperature : -40 °C to +70 °C.
• Operating temperature : +5°C to +40°C.
• Maximum relative humidity : 80 %.
• Dimensions: L 57mm, l 65mm, h 35 mm.
• Weight : 150 grams.
• Power supply 235 V Consumption : 2 VA
