- Manufactured in Japan
- Digital reading output accurate measurement results.

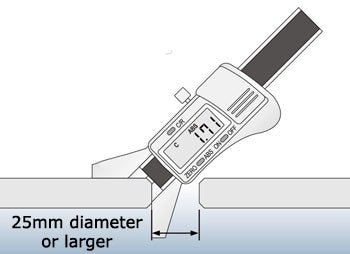

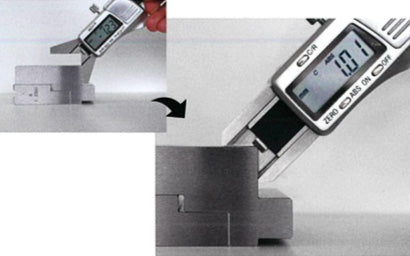

- Measure a small 45-degree chamfer offset, corner radius, or cylinder.
- Toggle key function between chamfer and radius measurement.
- Absolute and relative measurement functions. Zero setting function.
- Setting master pin gauge for calibration is included.
| Model | CR0508 |
| Measurement | 45° chamfer offset on a square corner, corner radius |
| Range |
Chamfer angle of 45 degree C0.01 - C15.00 (mm) Radius on a square corner R0.01 - R8.00 (mm) Circulator or radius on a corner of 90 degree and under R0.06 - R8.00 (mm) |
| Resolution | C=0.01 R=0.01 (mm) |
| Accuracy | C=±0.05 R=±0.08 (mm) |
| Material | Stainless steel（420） |

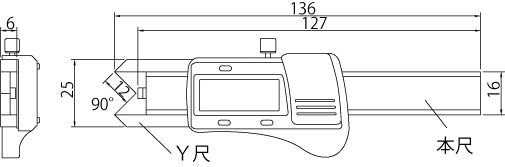

| Size | L136mm×W25mm, V opening=6mm thick Probe=3mm thick |
| Battery | 3V lithium coin battery (CR2032) 1 piece |
| Battery life | 1000 hours |
| Accessory | Setting masters pin gauge 20 diameter |
