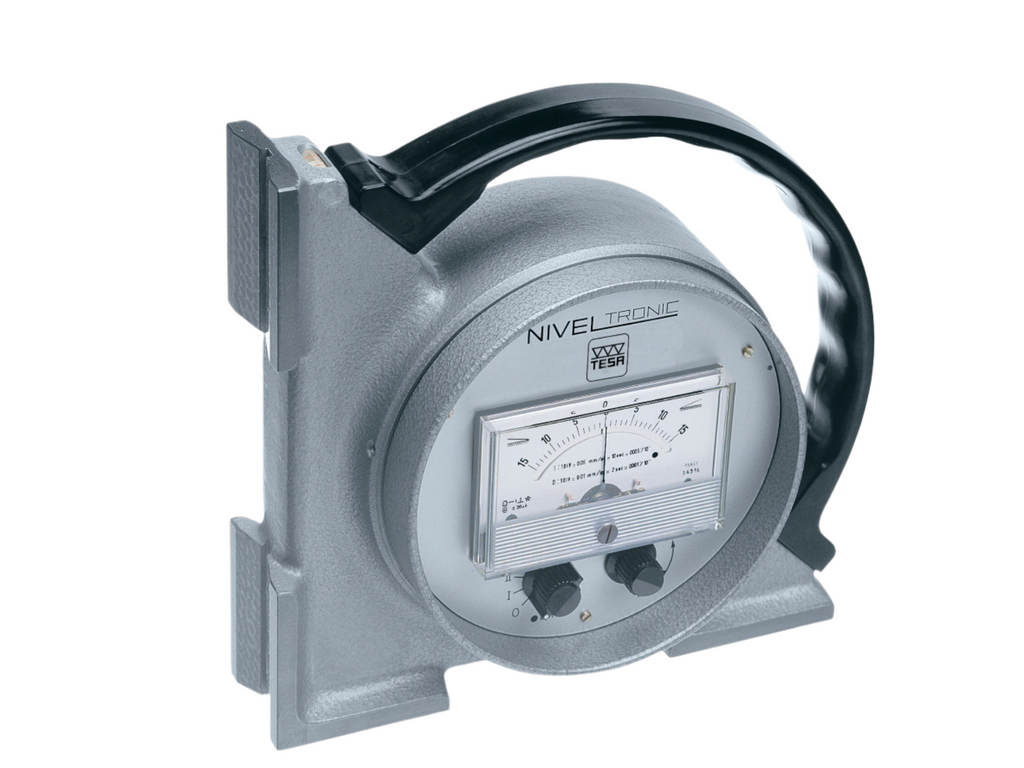

Tesa NIVELTRONIC electronic level, square, analogue display 03130060
The TESA NIVELTRONIC electronic levels with analogue display and integrated galvanometer have the special feature of a remarkably stable zero point (no shifting of the zero point). This feature is particularly appreciated for the adjustment or alignment of parts of large dimensions.
The quality of the galvanometer enables a high sensitivity of the pointer and this is very appreciated when measuring small variations in inclinations.
Standard: DIN 2276
Electromagnetic compatibility:
EN 50081-1/2
EN 50082-1/2
Maximum permissible errors:
As per DIN 2276
- up to 0,5 x measuring range: min. 0,001 mm/m, max. 1 % of the measured value
- from 0,5 x measuring range: max. 1 % of (2 x measured value - 0,5 x total range)
Repeatability: 1 µm/m
Material:
- Cast iron body
- Horizontal model with granite base
Power supply: 4 batteries AAA, 1,5 V
Packaging: Wooden case of about 0,8 kg
