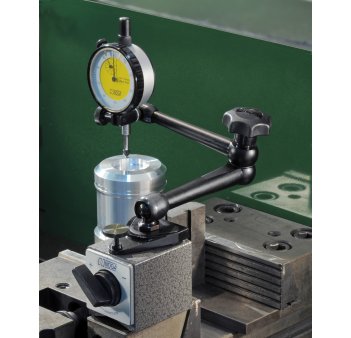

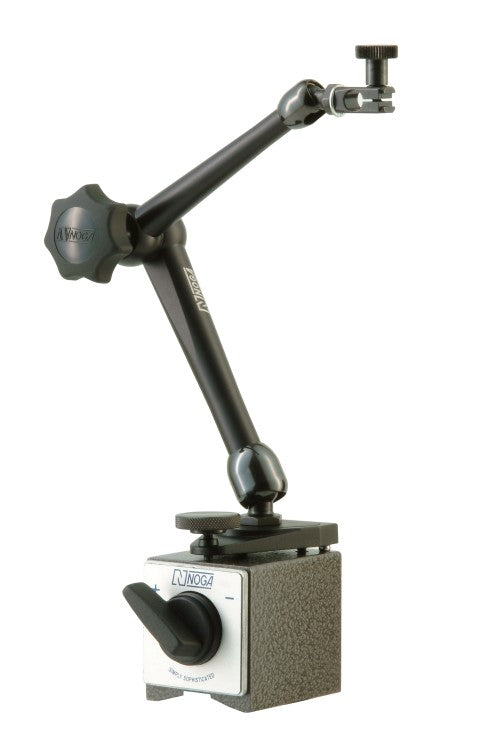

DG Holder USA standard - DG10503
Unique single direction Fine adjustment at base.
- Powerful on/off magnetic base.
- Holds 3/8" and dovetail.
- Unique central locking mechanism with Noga designed spring loaded bearing.
- Five axis holder.
- Instant fixation in any position.
- Easy to set up into required position.
- Black finished Arms.
- Weight: 1.40 Kg
- Clamp Holds: 8m and Dovetail
- Clamp Order P/N: FA1120
- Bottom Arm: 110mm
- Top Arm: 101mm
- Total Length: 232.5mm
- Magnet Force: 800 N
- Magnet Width: 50mm
- Magnet Length: 60mm
- Magnet Height: 55mm
No technical information is currently available.
No application information is currently available.

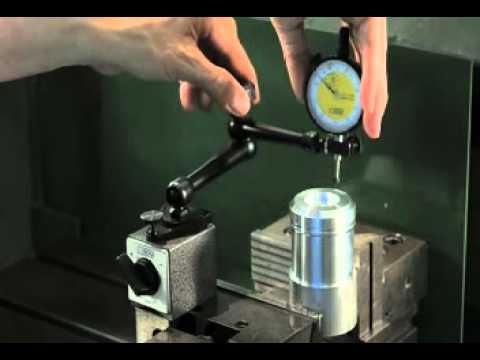

Product Video
