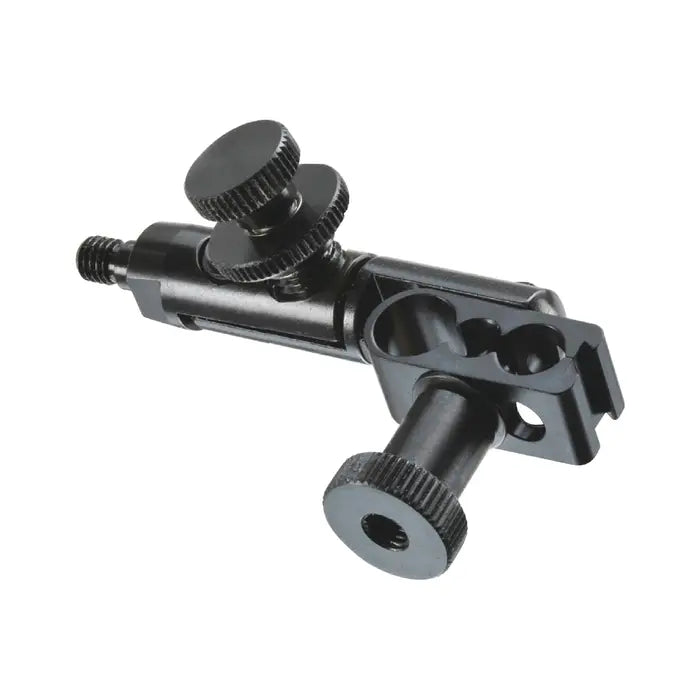

NOGA FA1400 Fine Adjustment Clamp Type, 3/8", 8mm, 6mm & Dovetail Hole Diameter Indicator Holder Clamp

Noga Fine Adjustment Universal Clamps for a Smooth Securing of Indicators. Noga offers the most sophisticated universal-standard clamps to be fixed on Noga's fine-adjust indicator holders so that they can hold dial and test indicators of various types. These fine adjustment clamps are swiveling clamps available in different models. All the models come with an M6-type thread and weigh around 0.10 lbs each. These fine adjustment clamps are made of either plastic or metal. FA1300 and FA1301 fine adjustment clamps from Noga are the plastic varieties of the top attachments for indicator holders to hold dial test gauges. They are an ideal option to be used for electrical discharge machining (EDM) applications. The FA1300 model plastic clamp has 8mm stem and 1/4-inch dovetail slots for holding indicators. The FA1301 model fine adjustment clamp, on the other hand, has 3/8-inch stem and 1/4-inch dovetail slots. FA1400 and FA1500 standard swivel clamps are the metal-made varieties available from Noga. They are fixed on holders for holding dial and test gauges used for various applications in industries such as automobile, chemical, manufacturing, and more. The FA1400 model is a 2SM universal metal swivel clamp, and it can hold mounting diameters of 6mm, 8mm, and 3/8-inch stems and 1/4-inch dovetails. It has two screws. The lower one is for quickly setting the indicator near the workpiece, and the upper one is for the final zero setting of the gauge. The FA1500 zinc-cast fine adjustment swivel clamp is another metal model with slots for 3/8-inch, 6mm, and 8mm stems, 1/4-inch dovetails, and a back lug. It can be used for heavy-duty indicators. All these models from Noga are to be used mainly with indicator holder models, including NF61003, DG61003, MG61003, MA61003, etc.

Benefits

• Noga's fine adjustment clamps come with universal slots for holding dial and test indicators of various types.
• The swivel clamps are designed for providing flexibility and versatility.
• Plastic and metal varieties are made taking into consideration various application needs.
• The screws on the clamps help tighten the indicators on the provided slots.
• The clamps can be used with different indicator holder models from Noga, including heavy-duty holders.

Applications

• Noga's fine adjustment universal clamps can be fixed on different models of Noga's fine adjustment indicator holders, including NF61003, DG61003, MG61003, MA61003, etc.
• FA1300 and FA1301 plastic model clamps are ideal to be used for electrical discharge machining (EDM) applications.
• Noga's industry-grade clamps are used for holding dial and test gauges used in various applications in industries, including automobile, chemical, manufacturing, labs, and more.
