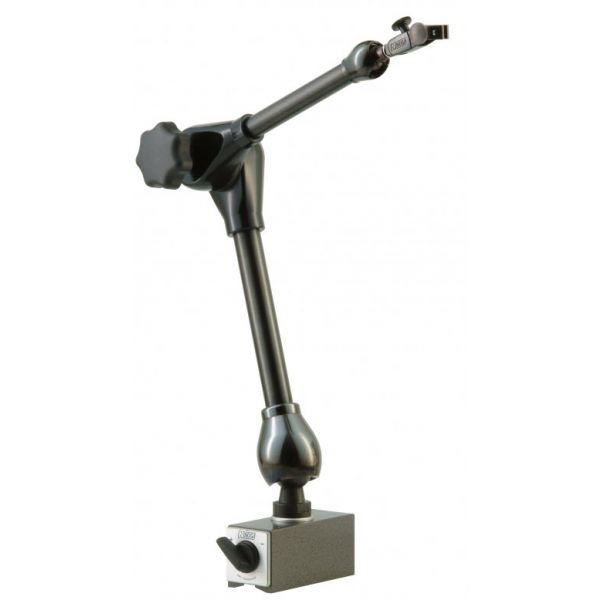

MA Holder - MA61003
New Fine adjustment on Top with universal swivel clamp.
- Unique central locking mechanism with Noga designed spring loaded bearing.
- Dial gauge holder is 3 dimensional.
- Most powerful on/off magnetic base.
- Instant fixation in any position.
- Fast and easy to set up gauges into required position.
- Black finished Arms.
- Clamp Holds: 8mm,3/8"and dovetail
- Bottom thread: Ext. M10 X 1.25
- Weight: 3.50 Kg
- Bottom Arm: 286.5mm
- Top Arm: 222.5mm
- Total Length: 580mm
- Magnet Force: 1300 N
- Magnet Width: 50mm
- Magnet Length: 120mm
- Magnet Height: 55mm
No technical information is currently available.
No application information is currently available.

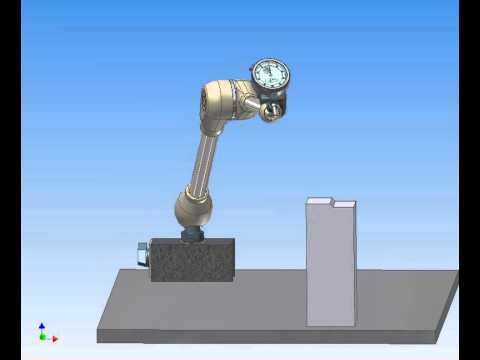

Product Video
