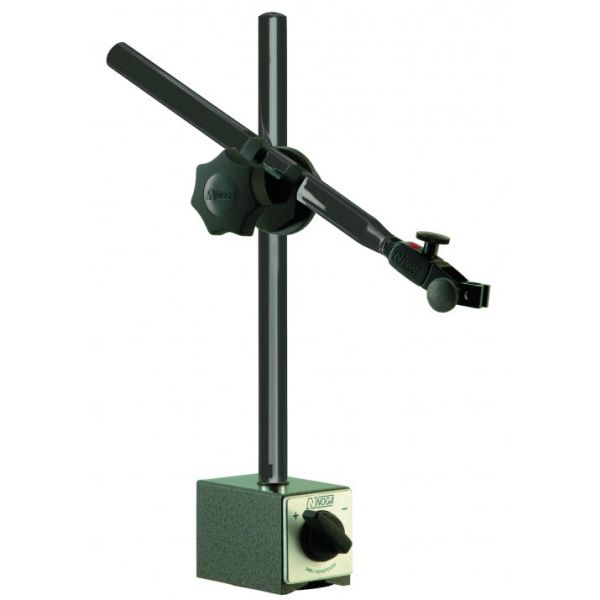

Noga Magnetic Stand PH6400
New Fine adjustment on the bottom
- Powerful on/off magnetic base.
- Strong arm lock by using the unique 3-point system.
- Easy to set up into required position
Features
- Clamp Holds: 6mm, 8mm, 3/8"and dovetail
- Bottom thread: M8
- Weight: 1.70 Kg
- Post Length and diameter: Ø16 x 260mm
- Arm length and diamter: Ø16 x 225mm
- Magnet Force: 800 N
- Magnet Width: 50mm
- Magnet Length: 75mm
- Magnet Height: 55mm
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
