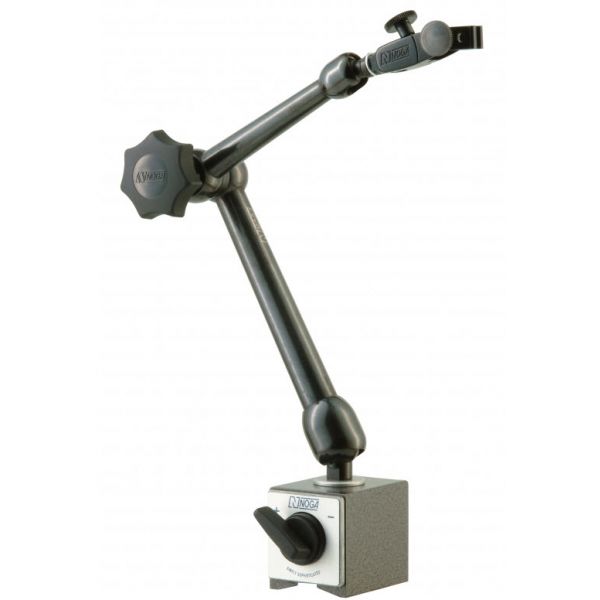

Large MG Holder - MG71003
New Fine adjustment on Top with universal swivel clamp.
- Unique central locking mechanism with NOGA designed spring loaded bearing.
- 5 axis holder.
- powerful on/off magnetic base.
- Instant fixation in any position.
- Fast and easy to set up gauges into required position.
- Black finished Arms.- Weight: 1.95 Kg
- Bottom thread: Ext. M8
- Clamp Holds: 6mm, 8mm,3/8"and dovetail
- Clamp Order P/N: FA1500
- Bottom Arm: 163.5mm
- Top Arm: 113mm
- Magnet Force: 800 N
- Magnet Width: 50mm
- Magnet Length: 60mm
- Magnet Height: 55mm
-
-
-
-
