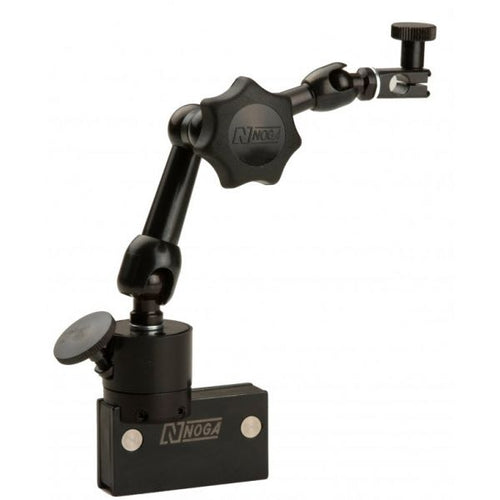

Noga NF1033 Noga Magnetic Base Permanent Magnet Dimensions : W16 x L60 x H32. Magnet force . : 280N Bottom arm Length : 56mm Top Arm length : 51mm Weight: : 0.545 Kg. Fine Adjustment : At Base 3/8 bore diameter
Roll over image to zoom in Click on image to zoom
Noga NF1033 Noga Magnetic Base Permanent Magnet Dimensions : W16 x L60 x H32. Magnet force . : 280N Bottom arm Length : 56mm Top Arm length : 51mm Weight: : 0.545 Kg. Fine Adjustment : At Base 3/8 bore diameter

Noga NF1033 Noga Magnetic Base Permanent Magnet Dimensions : W16 x L60 x H32. Magnet force . : 280N Bottom arm Length : 56mm Top Arm length : 51mm Weight: : 0.545 Kg. Fine Adjustment : At Base 3/8 bore diameter

NogaSKU: NF1033
Price: £140.00 Excluding VAT

  • 360° NF holder 3/8" permanent - NF1033

    - Permanent magnet. 5 axis Holder.
    - 360° fine adjustments at base.
    - Central locking mechanism with NOGA designed spring loaded bearing.
    - Black finished arms.

    • Weight: 0.545 Kg
    • Clamp Holds: 3/8" and Dovetail
    • Clamp Order P/N: FA1100
    • Bottom Arm: 56mm
    • Top Arm: 51mm
    • Magnet Force: 280 N
    • Magnet Width: 16mm
    • Magnet Length: 60mm
    • Magnet Height: 32mm
