NogaSKU: PH4016
Price: £85.00 Excluding VAT

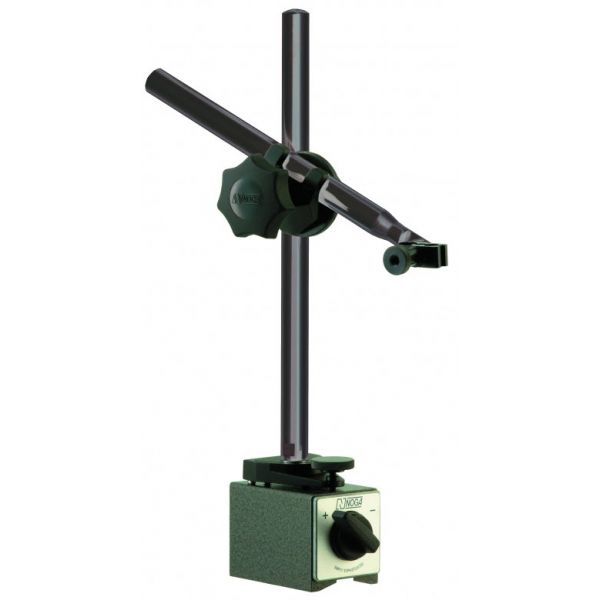

Mini PH Holder - PH4016

Improved single direction Fine adjustment at base.
- Powerful on/off magnetic base.
- Universal Swivel Clamp for all dial and test indicators.
- Strong arm lock by using the unique 3-point system.
- Easy to set up gauges into required position

  • Clamp Holds: 6mm, 8mm,3/8"and dovetail
  • Weight: 2.4 Kg
  • Post Length and diameter: Ø16mm x 260mm
  • Arm length and diamter: Ø16mm x 255mm
  • Magnet Force: 1000 N
  • Magnet Width: 50mm
  • Magnet Length: 70mm
  • Magnet Height: 55mm
  • order no. for 3 points clamp: PH4016
  • order no. for universal swivel clamp: FA1210
