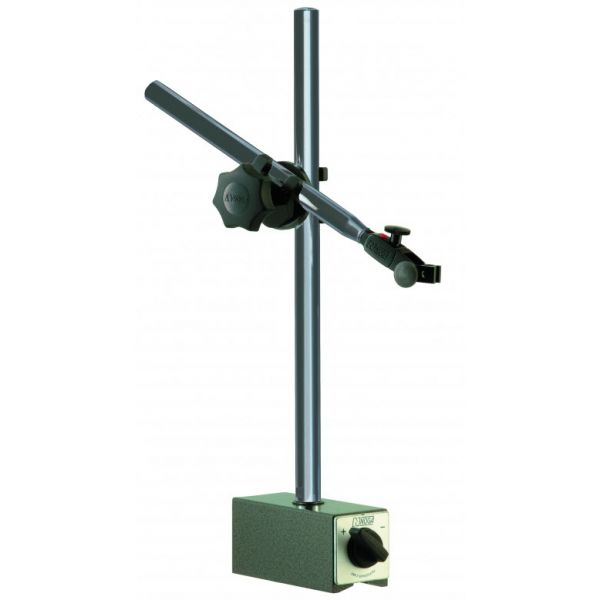

Noga Magnetic Stand PH6800

New Fine adjustment on the bottom
- Powerful on/off magnetic base.
- Strong arm lock by using the unique 3-point system.
- Easy to set up into required position

Features

Clamp Holds: 6mm, 8mm, 3/8"and dovetail
Bottom thread: M8
Weight: 3.5KG
Post Length and diameter: 18mm diameter x 350mm
Arm length and diamter: Ø16 x 225mm
Magnet Force: 1300 N
Magnet Width: 50mm
Magnet Length: 120mm
Magnet Height: 55mm

Product Information
Part Number	PH6800
Type	Magnetic Stand
Height	Overall Height 405mm
Stem Diameter	Holds 6mm, 8mm, 3/8” and dovetail
Base Size	Magnet Width: 50mm Magnet Length: 120mm Magnet Height: 55mm
Magnetic Pull	1300N
Fine Adjustment	Fine adjustment on top with universal swivel clamp.
