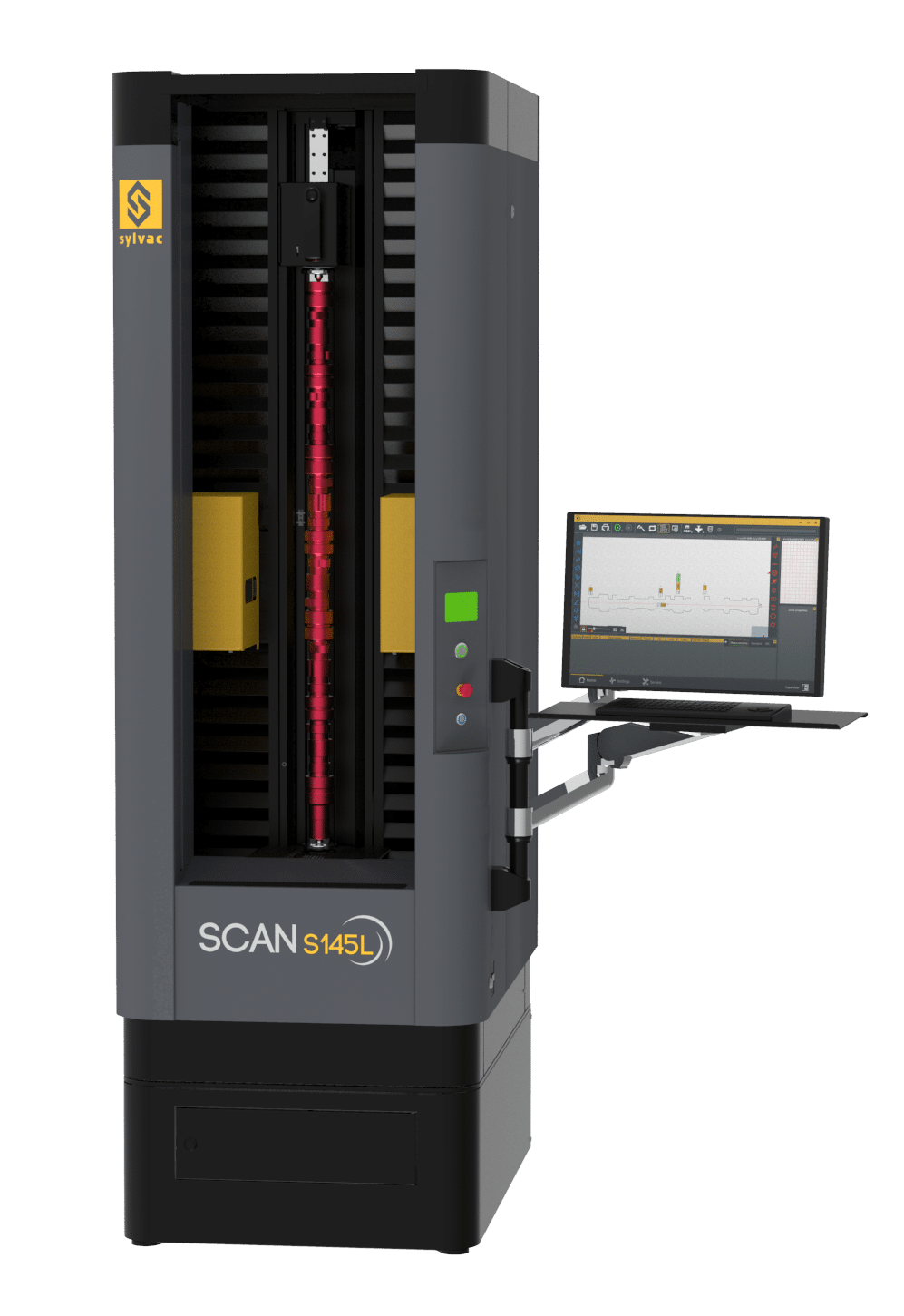

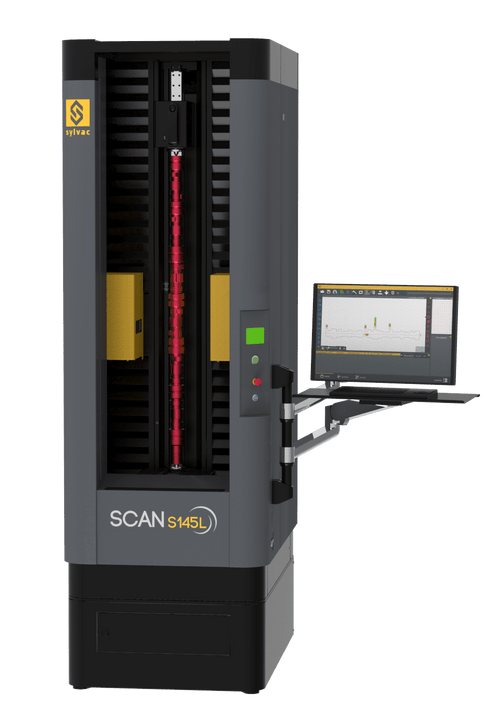

Optical measurement SYLVAC-SCAN S145 145mm diam x 1280mm length 902-4147

Name: Optical measurement SYLVAC-SCAN S145 145mm diam x 1280mm length 902-4147
Brand: Sylvac
SKU: 902-4147
Availability: InStock

SylvacSKU: 902-4147

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

POA

Quantity:

All prices exclude VAT, which will be added at checkout.

Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of extra large cylindrical parts. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 1280mm long. With a complete 2D part scan taking a few seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.
Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. With its ‘Automation Ready’ configuration, the machine seamlessly integrates into your workflow.

	902-4147
EAN	7640125682755
	Diameter	Length
Measuring range (mm)	145	1280
Resolution up to (mm)	0.0001
Max. error (µm)	1.5 + (D[mm]/100) ¹	4 + (L[mm]/200) ¹
Repeatability 2δ (µm)	0.5	1.0
Holding capacity (mm)	254	1280
Axial positioning speed (mm/s)	Up to 160
Headstock	Rotary headstock for static and dynamic measurements
Max. weight of part (kg)	100
Machine’s weight (kg)	650

Applications

Product Information
Part Number	902-4147
Measuring Ranges	145mm diam x 1280mm length
Graduation	.0001mm
Accuracy	1.5 + (D[mm]/100) ¹ on diam, 4 + (L[mm]/200) ¹ on length
Unit of Measurement	Metric
Product Description	Optical measurement SYLVAC-SCAN S145 145mm diam x 1280mm length 902-4147
Manufacturer	Sylvac
