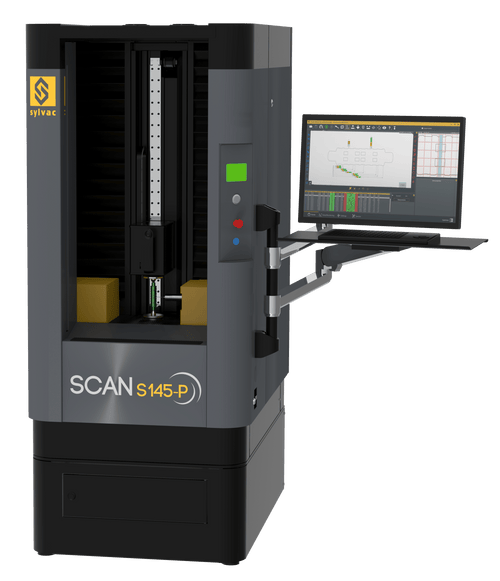

Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145

Name: Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145
Brand: Sylvac
SKU: 902-4145
Availability: InStock

SylvacSKU: 902-4145

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

POA

Quantity:

All prices exclude VAT, which will be added at checkout.

Features

Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of large cylindrical parts up tp 100kg. One of our machine can handle virtually all measurements (static and dynamic) on cylindrical parts up to 145mm wide and 615mm long. With a complete 2D part scan taking less than 3 seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.
Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors and exists with or without tilt system for true comprehensive thread measurement.
Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

	902-4145
EAN	7640125682687
	Diameter	Length
Measuring range (mm)	145	615
Resolution up to (mm)	0.0001
Max. error (µm)	1.5 + (D[mm]/100) ¹	4 + (L[mm]/200) ¹
Repeatability 2δ (µm)	0.5	1.0
Holding capacity (mm)	254	615
Axial positioning speed (mm/s)	Up to 160
Headstock	Rotary headstock for static and dynamic measurements
Max. weight of part (kg)	100
Machine’s weight (kg)	530

Product Information
Part Number	902-4145
Measuring Ranges	145mm diam x 615mm length
Graduation	.0001mm
Accuracy	1.5 + (D[mm]/100) ¹ on diam, 4 + (L[mm]/200) ¹ on length
Unit of Measurement	Metric
Product Description	Optical measurement SYLVAC-SCAN S145 145mm diam x 615mm length 902-4145
Manufacturer	Sylvac
