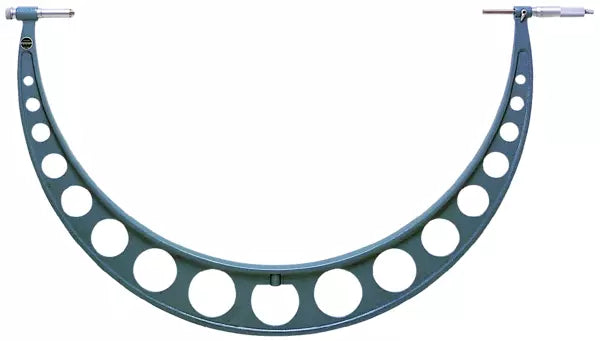

Outside Microm. Anvil Extension Collar 500-600mm 105-103
Outside Microm. Anvil Extension Collar 500-600mm 105-103
Outside Microm. Anvil Extension Collar 500-600mm 105-103
Outside Microm. Anvil Extension Collar 500-600mm 105-103
Roll over image to zoom in Click on image to zoom
Outside Microm. Anvil Extension Collar 500-600mm 105-103Outside Microm. Anvil Extension Collar 500-600mm 105-103Outside Microm. Anvil Extension Collar 500-600mm 105-103Outside Microm. Anvil Extension Collar 500-600mm 105-103

Outside Microm. Anvil Extension Collar 500-600mm 105-103

MitutoyoSKU: 105-103
List price: £1,220.00 Offer price: £891.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod 450-600mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.

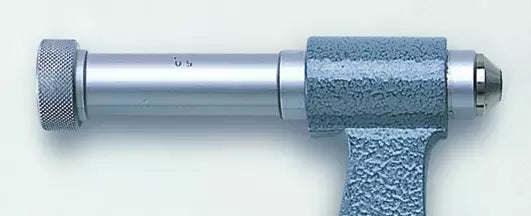

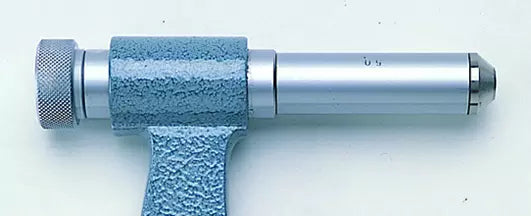

This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:
  • The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
  • The 50mm spindle stroke gives you extended range compared to standard spindle types.
  • Anvil collars extend the measuring range even further.
  • The setting standards supplied cover the whole measuring range.
Features
Digital/Analog:
Analog
Delivered:
Including box, with spanner, setting standard (2 pcs.), 50 mm extension collar
Inch-Metric:
Metric
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0,5 mm
Range:
500 - 600 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Graduation:
0,01 mm
Limit of error:
±14 µm
Spindle feed error:
6 µm
Flatness:
1,3 µm
Parallelism:
8 µm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring force:
5 - 10 N
Extension collar:
50 mm
Delivered:
Including box, setting standards (2 or 4 pieces), adjustable stop (for models over 1000 mm range)
Mass:
5.53 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Outside Microm. Anvil Extension Collar 500-600mm 105-103 Click to open the PDF document
