Mitutoyo Outside Micrometer Interchangeable Anvil 0-150mm 104-135A
Roll over image to zoom in Click on image to zoom
Mitutoyo Outside Micrometer Interchangeable Anvil 0-150mm 104-135A

Mitutoyo Outside Micrometer Interchangeable Anvil 0-150mm 104-135A

MitutoyoSKU: 104-135A
List price: £456.00 Offer price: £333.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

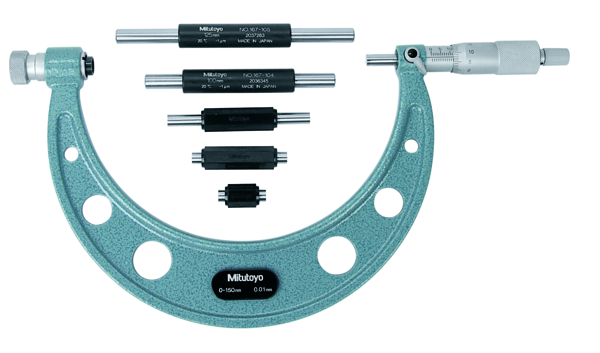

Mitutoyo; Micrometer with Interchangeable Anvil

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

  • Range: 0-150mm
  • Resolution: 0.01mm
  • Parallelism: 0.003mm
  • Flatness: 0.0006mm
  • Measuring force: 5-10N
  • Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
  • Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
  • Spindle feed error: 0.003mm
  • Interchangeable anvils: 6
  • Setting standard: 5 (25, 50, 75, 100, 125mm)
  • Scale: Thimble and sleeve satin chrome finish, ø18 mm
  • Ratchet stop
  • Analogue

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Outside Micrometer Interchangeable Anvil 0-150mm 104-135A Click to open the PDF document
