Outside Micrometer Interchangeable Anvil 12-18" 104-201
Roll over image to zoom in Click on image to zoom
Outside Micrometer Interchangeable Anvil 12-18" 104-201

Outside Micrometer Interchangeable Anvil 12-18" 104-201

MitutoyoSKU: 104-201
List price: £825.00 Offer price: £602.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Outside Micrometer Interchangeable Anvil 12-18" 104-201

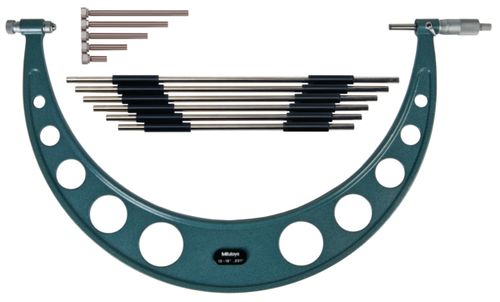

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

  • Range: 12-18?
  • Resolution: 0.001?
  • Parallelism: 0.00026?
  • Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
  • Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
  • Spindle feed error: 0.00015?
  • Scale: Thimble and sleeve satin chrome finish, ø21 mm
  • Interchangeable anvils: 6
  • Setting standard: 6 (12, 13, 14, 15, 16, 17?)
  • Ratchet stop
  • Analogue
  • Inch

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Outside Micrometer Interchangeable Anvil 12-18" 104-201 Click to open the PDF document
