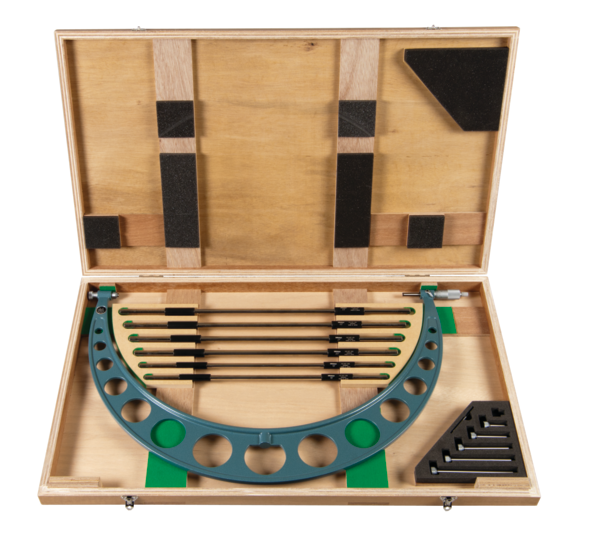

Mitutoyo; Micrometer with Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 18-24?
- Resolution: 0.001?
- Parallelism: 0.00032?
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.00015?
- Scale: Thimble and sleeve satin chrome finish, ø21 mm
- Interchangeable anvils: 6
- Setting standard: 6 (18, 19, 20, 21, 22, 23?)
- Ratchet stop
No technical information is currently available.
No application information is currently available.
