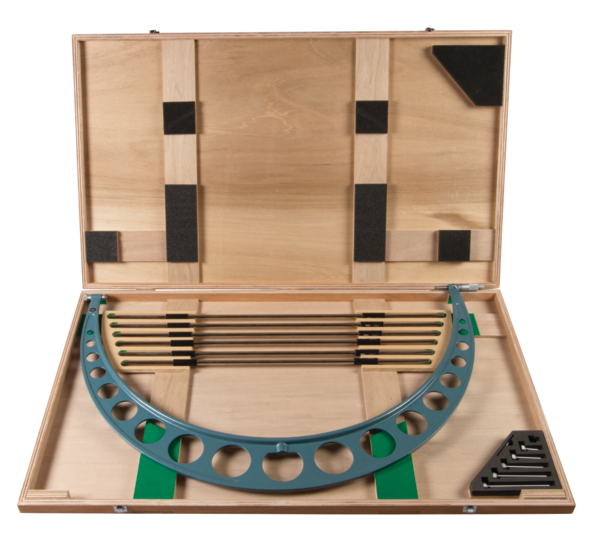

Outside Micrometer Interchangeable Anvil 30-36" 104-204

Mitutoyo; Micrometer with Interchangeable Anvil

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

• Range: 30-36″
• Resolution: 0.001″
• Parallelism: 0.00044″
• Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
• Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
• Spindle feed error: 0.00015″
• Scale: Thimble and sleeve satin chrome finish, ø21 mm
• Measuring force: 10-14N
• Interchangeable anvils: 6
• Setting standard: 6 (30, 31, 32, 33, 34, 35″)
• Ratchet stop
