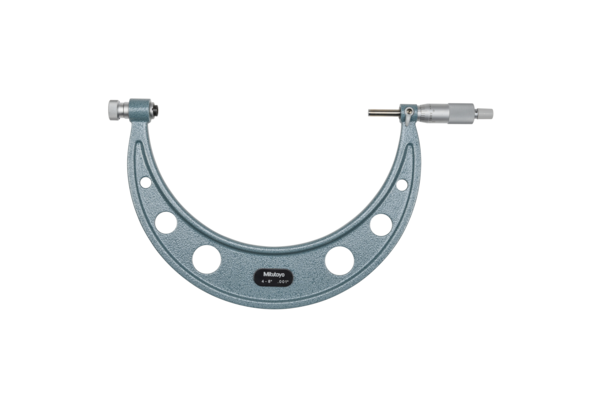

Mitutoyo; Micrometer with Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 4-8″
- Resolution: 0.001″
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Interchangeable anvils: 4
- Setting standard: 4 (4, 5, 6, 7″)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
- Ratchet stop
