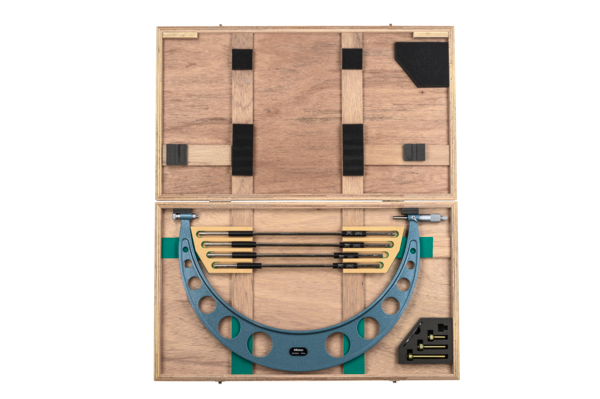

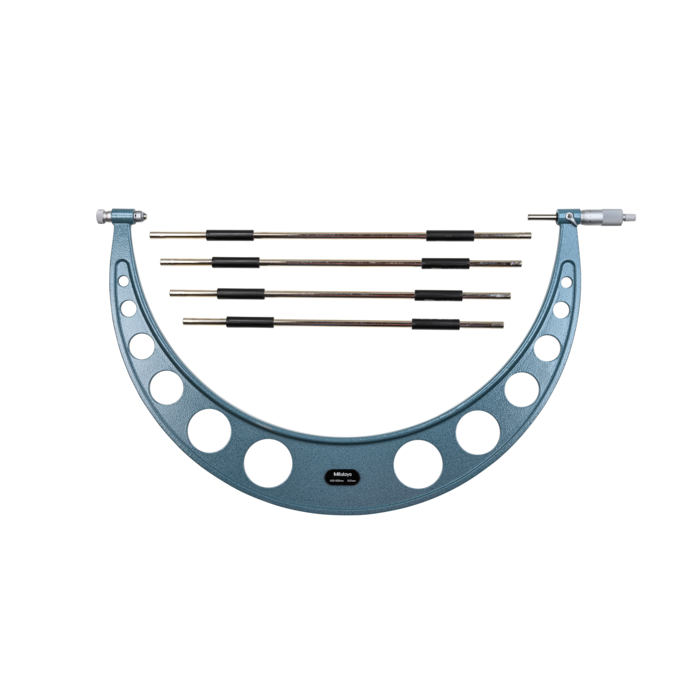

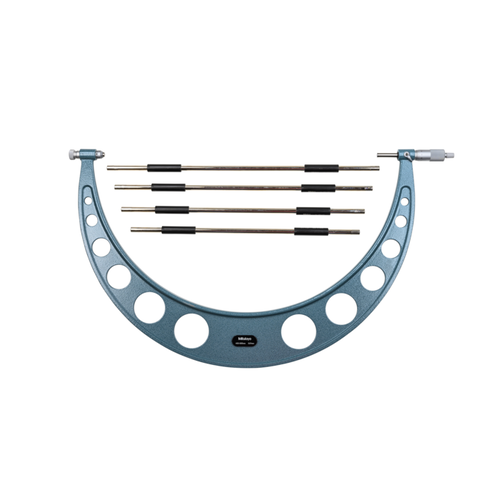

Mitutoyo; Micrometer with Interchangeable Anvil
A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.
- Range: 400-500mm
- Resolution: 0.01mm
- Parallelism: 0.006mm
- Flatness: 0.001mm
- Measuring force: 5-10N
- Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
- Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
- Spindle feed error: 0.003mm
- Interchangeable anvils: 4
- Setting standard: 4 (400, 425, 450, 475mm)
- Scale: Thimble and sleeve satin chrome finish, ø18 mm
No technical information is currently available.
No application information is currently available.
