Outside Micrometer Interchangeable Anvil 50-150mm 104-161A

Roll over image to zoom in Click on image to zoom

Outside Micrometer Interchangeable Anvil 50-150mm 104-161A

Name: Outside Micrometer Interchangeable Anvil 50-150mm 104-161A
Brand: Mitutoyo
SKU: 104-161A
Price: 308.0 GBP
Availability: InStock

MitutoyoSKU: 104-161A

All prices exclude VAT, which will be added at checkout.

Price:

£308.00 £440.00

Quantity:

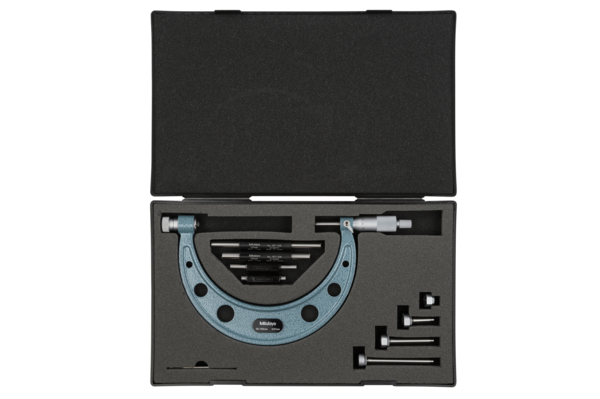

Mitutoyo; Micrometer with Interchangeable Anvil

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

Range: 50-150mm
Resolution: 0.01mm
Parallelism: 0.003mm
Flatness: 0.0006mm
Measuring force: 5-10N
Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
Spindle feed error: 0.003mm
Interchangeable anvils: 4
Setting standard: 5 (25, 50, 75, 100, 125mm)
Scale: Thimble and sleeve satin chrome finish, ø18 mm
Ratchet stop
Analogue

Product Information
Part Number	104-161A
Measuring Range	50-150mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Interchangeable Anvil
Graduation on Thimble	.01mm
Micrometer Head Stroke	25mm
Constant Force Device	Ratchet Stop
Flatness	.0006mm
Parallelism	(2+R/100)µm/.00008+.0004 R/4)
Setting Rod	4 Pieces
Interchangeable Anvils	4 pcs
Calibration Code	CAL4 B4
