Mitutoyo Outside Micrometer Interchangeable Anvil 800-900mm 104-147A

Roll over image to zoom in Click on image to zoom

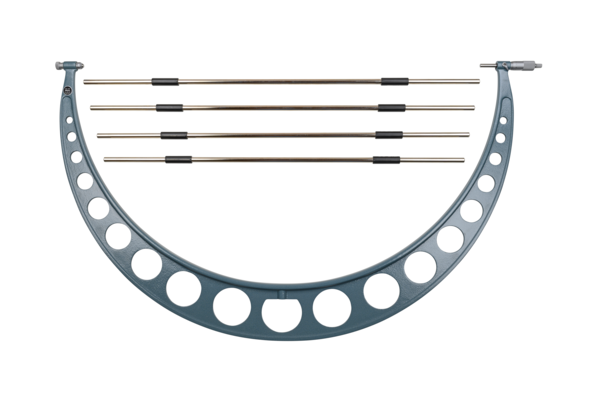

Mitutoyo Outside Micrometer Interchangeable Anvil 800-900mm 104-147A

Name: Mitutoyo Outside Micrometer Interchangeable Anvil 800-900mm 104-147A
Brand: Mitutoyo
SKU: 104-147A
Price: 973.0 GBP
Availability: InStock

MitutoyoSKU: 104-147A

All prices exclude VAT, which will be added at checkout.

Price:

£973.00 £1,390.00

Quantity:

Mitutoyo; Micrometer with Interchangeable Anvil

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

Range: 800-900mm
Resolution: 0.01mm
Parallelism: 0.01mm
Flatness: 0.001mm
Measuring force: 5-10N
Measuring face: Carbide tipped, micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ø6.35 mm , spindle pitch 0.5mm
Spindle feed error: 0.003mm
Interchangeable anvils: 4
Setting standard: 4 (800, 825, 850, 875mm)
Scale: Thimble and sleeve satin chrome finish, ø18 mm

Product Information
Part Number	104-147A
Measuring Range	800-900mm
Graduation	.01mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Interchangeable Anvil
Graduation on Thimble	.01mm
Micrometer Head Stroke	25mm
Constant Force Device	Ratchet Stop
Flatness	.001mm
Parallelism	(2+R/100)µm/.00008+.0004 R/4)
Setting Rod	4 Pieces
Interchangeable Anvils	4 pcs
Calibration Code	CAL4 B15
