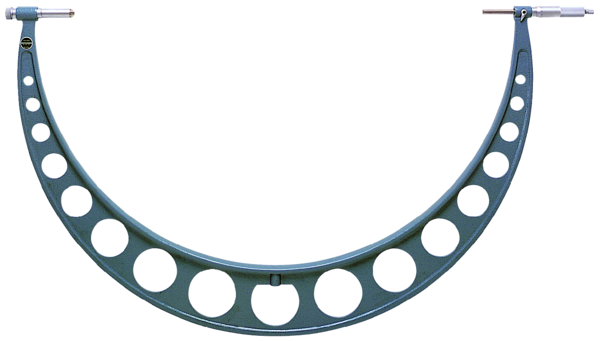

Mitutoyo Outside Micrometer with Anvil Extension Collar 700-800mm 105-105

Outside Micrometer with Anvil Extension Collar

This Outside Micrometer comes with Extension Anvil Collars.
It offers you the following benefits:

• The collars have a stable and rugged yet lightweight tube construction, and are ideal for large micrometers.
• The 50mm spindle stroke gives you extended range compared to standard spindle types.

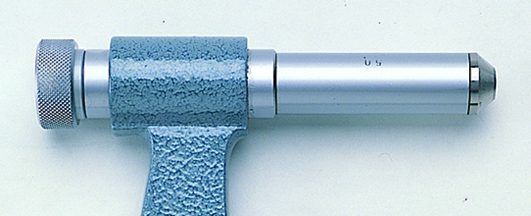

• Anvil collars extend the measuring range even further.
• The setting standards supplied cover the whole measuring range.
• Range: 700-800mm
• Graduation 0.01mm
• Flatness: 0.0013mm
• Parallelism: 0.010mm
• Measuring force: 5-15N
• Extension collar: 50mm
• Carbide tipped, micro-lap finish
• With spindle lock: 8 mm diameter
• Spindle pitch: 0.5 mm
• Thimble and sleeve satin chrome finish: 21 mm diameter
• Analogue
• Metric
