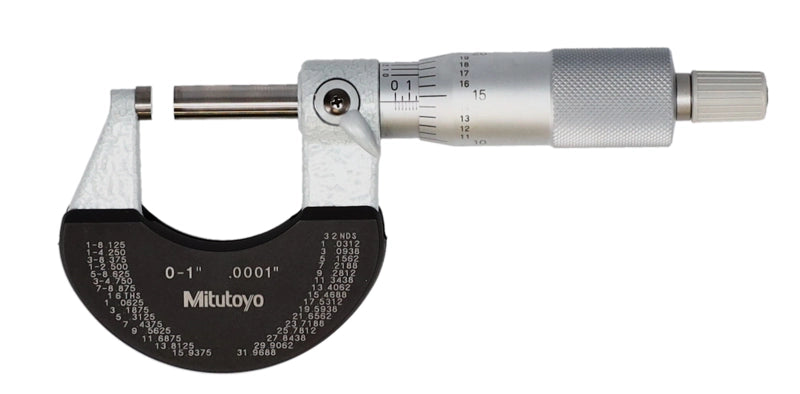

A Mitutoyo basic, cost effective, non-digital micrometer. Cutaway frame behind anvil helps measurement in confined spaces. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

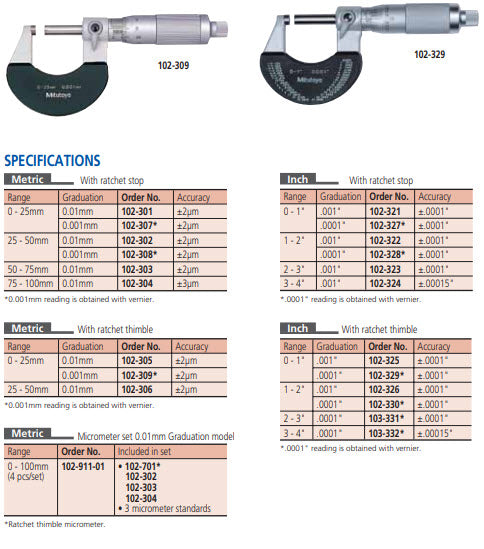

Specification
Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Inch
Range:
0 - 1"
Graduation:
0,0001"
Max.
Permissible Error
J MPE:
±.00008"
Flatness:
0,000024"
Parallelism:. 00008"
Remarks:
Ratched Stop
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Mass:

180 g
