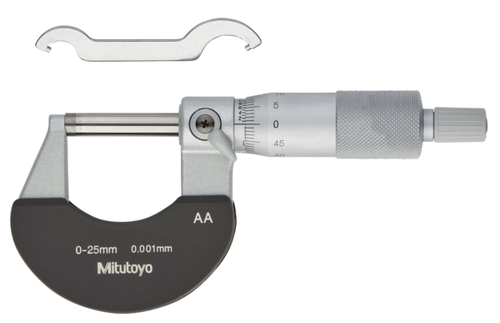

Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311

MitutoyoSKU: 102-311
List price: £145.00 Offer price: £106.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Cut-away frame behind anvil for measuring in hard to reach places. A ratchet stop or friction thimble guarantees repeatable measurement.

Specification
Digital/Analog:
Analog
Delivered:
Including box, key, certificate of inspection
Inch-Metric:
Metric
Range:
0 - 25 mm
Max.
Permissible Error
J MPE:
±1 µm
Flatness:
0,3 µm
Parallelism:
2 ?m
Remarks:
Ratched Stop
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
180 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Outside Micrometer with Heat Ins. Plate 0-25mm, 0,001mm 102-311 Click to open the PDF document
