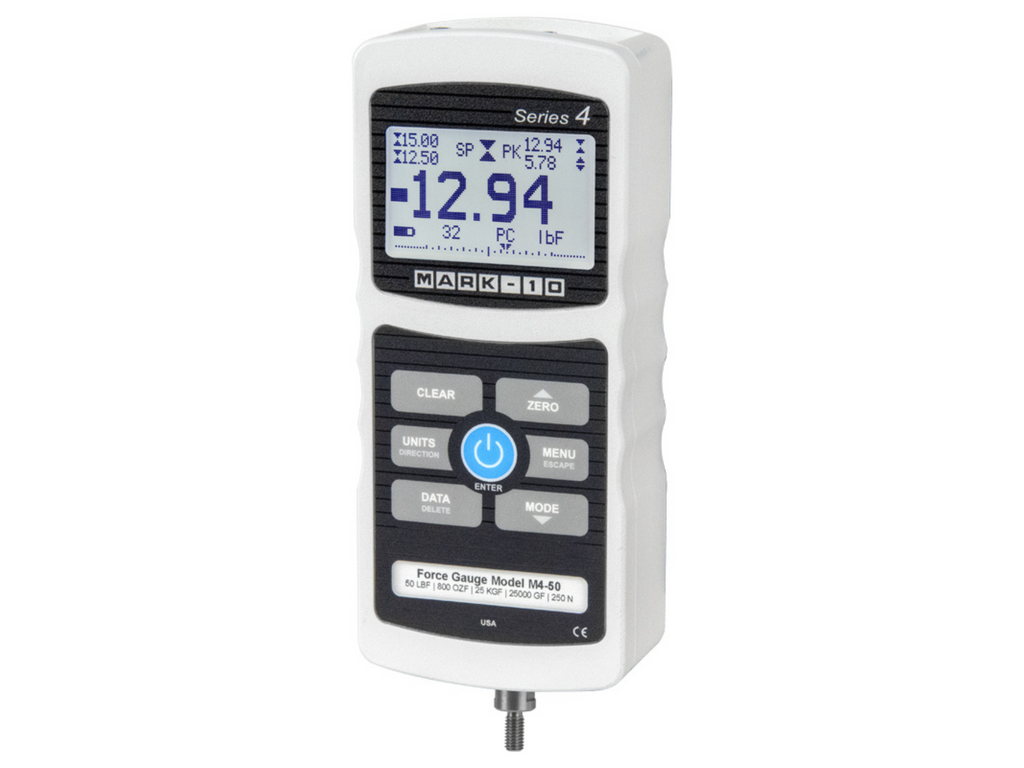

Mark-10 Performance Digital Force Gauge 0.25 lbF / 1000 mN M4-025

Series 4 Performance Digital Force Gauge

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analogue load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software. The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Specification

• High-speed 3,000 Hz sampling rate
• USB, RS-232, Mitutoyo, and analog outputs
• Large backlit graphic display
• 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
• Live load bar graph with set point markers
• Programmable set points, with alarms and outputs
• Peak readings and set points always displayed
• 5 selectable units of measurement
• Configurable audio alarms and key tones
• Password protection, configurable for individual keys and calibration
• 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN

All images are for representation only.
