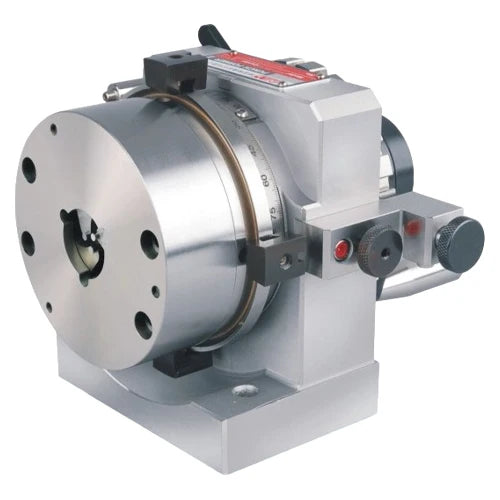

PFH-SC40 Super Precision INOX 3-Jaws Punch Former Accuracy .003mm

PFH-SC40 is adopting quality stainless steel with waterproof and stronger structure leading lasting durability.
► Special designed SC40 3-Jaw Chuck provide rapid clamping and it suitable for mass production, workpiece with round shaped can precisely & rapidly clamped.
► Torgue wrench included for consistent precision performance
► Adopting high precision double bearings in its structure to achieve higher accuracy, rigidity and stability.

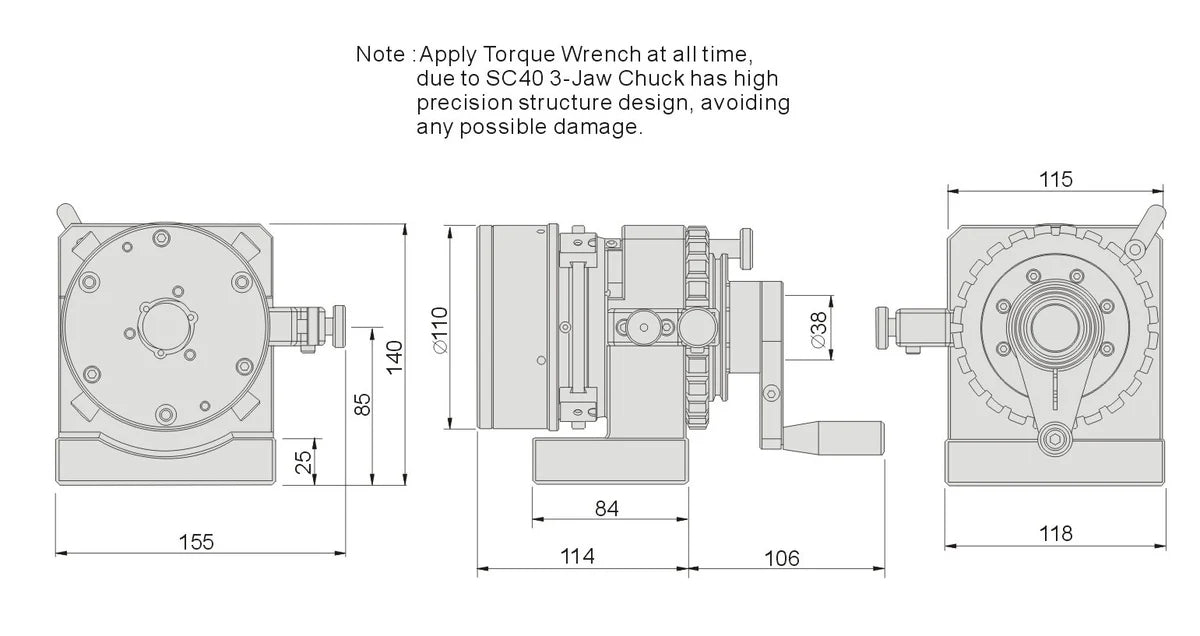

Main parameters:
Center height…………….................85 ± 0.5mm
Indexer tooth q'ty & accuracy………24、15°± 5"
Through hole diameters…………….........Ø 25mm
Hole dia. of 3-Jaw Chuck...................Ø 25mm
Min. clamping range……………….............Ø 1mm
Max. clamping range ……………............Ø 25mm
Rotational accuracy …………..........……0.003mm
Repeat accuracy……………........within 0.003mm
