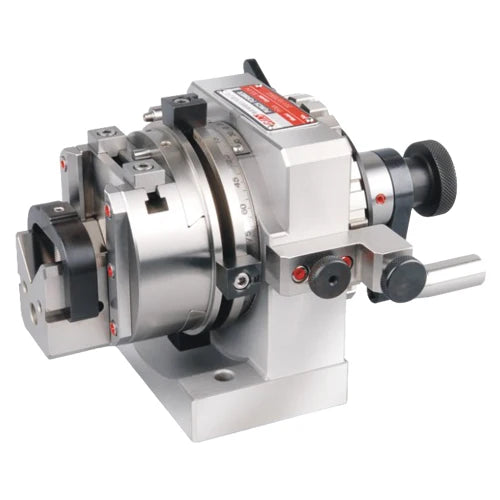

PFH350 Precision Punch Former Center height 85+0.5mm Clamping dia. range of V-block Ø3~38mm Travel of V-block 30mm Indexer tooth q'ty & accuracy 24、15°±5" Clamping accuracy (50mm) 0.005mm Through hole diameters Ø36mm

Suitable for grinding and EDM machines.
IP55
Compact and durable structure with through hole
design which makes it capable of forming various
shapes of punches as well as electrode.
Stopper design for fast positioning polygonal
punchese.
Fine-tuning for vertical movement of V-block,
easy for clamping workpiece and center
calibration.
Adopting high precision double bearings to
achieve higher stability and accuracy, it also
makes longer lifecycle.
Made of stainless steel, rustless & maintenance
easy.

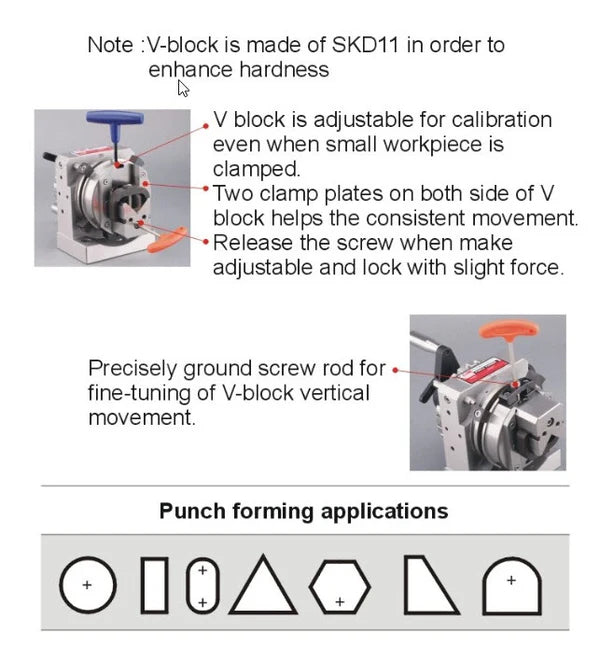

Precisely ground screw rod for
fine-tuning of V-block vertical
movement.
©
Punch forming applications

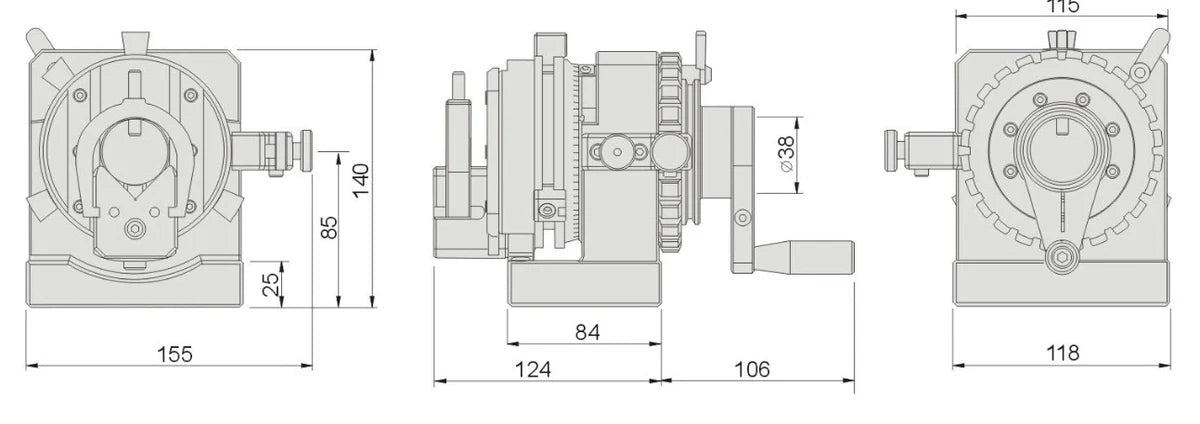

Main parameters:
Center height 85+0.5mm
Clamping dia. range of V-block Ø3~38mm
Travel of V-block 30mm
Indexer tooth q'ty & accuracy 24、15°±5"
Clamping accuracy (50mm) 0.005mm
Through hole diameters Ø36mm
