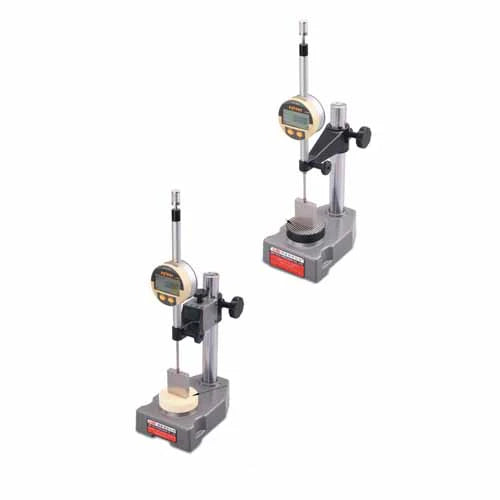

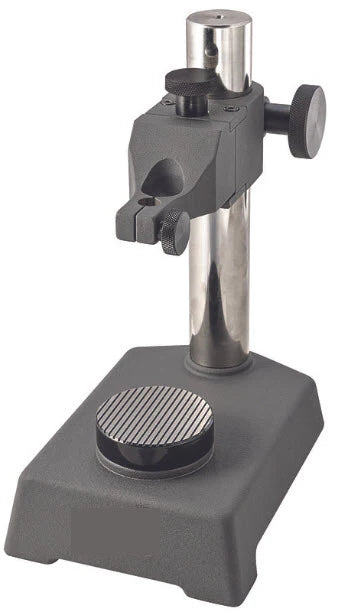

PMSTB Precision Comparator Stand Serrated anvil SKD11 Steel 160 x100 x40mm Column 25mm x 200mm Indicator clamping 8mm

Compact and sturdy design with slick look and ultra-precision assembly parts.
► With fine-tuning function, easy to set zero.
► Especially for measurement of comparatively small parts.
► The column is precisely ground, hardened and plating.
► The table is precisely ground, hardened and polished in order to ensure the accuracy.
► The stand can be turn 180% and applied on large surface granite for measuring larger workpiece's flatness.
► Standard type is suitable for digital dial indicator*.
► Fine-tuning type is suitable for dial indicator*.

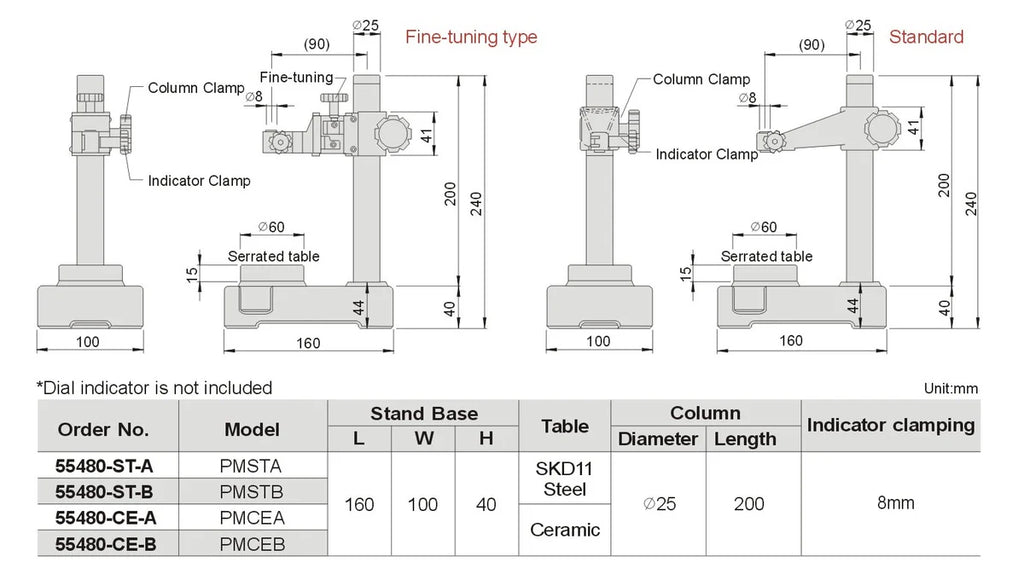

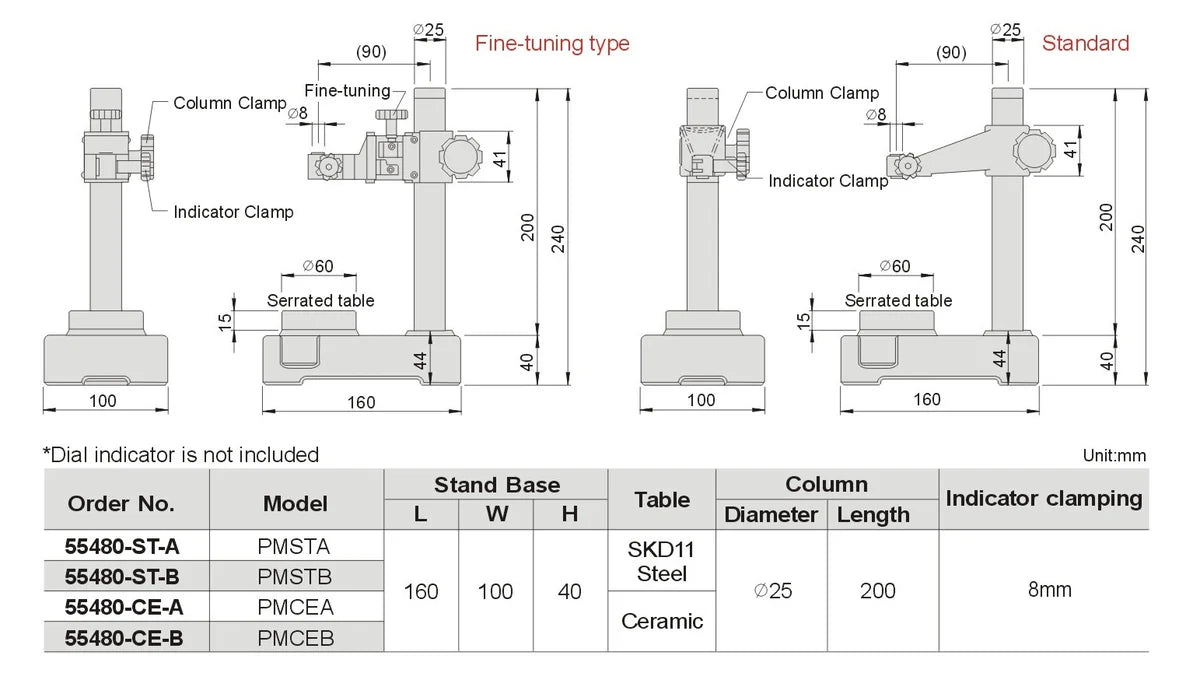

Main parameters:
Vertical stroke……………130mm
Column diameter………Ø 25mm
Table diamerter…………Ø 60mm
Flatness……………………0.001mm

Serrated Anvil
