Point Micrometer with Carbide Tip 0-1", 15° Tip 112-189

Roll over image to zoom in Click on image to zoom

Point Micrometer with Carbide Tip 0-1", 15° Tip 112-189

Name: Point Micrometer with Carbide Tip 0-1", 15° Tip 112-189
Brand: Mitutoyo
SKU: 112-189
Price: 193.9 GBP
Availability: InStock

MitutoyoSKU: 112-189

All prices exclude VAT, which will be added at checkout.

Price:

£193.90 £277.00

Quantity:

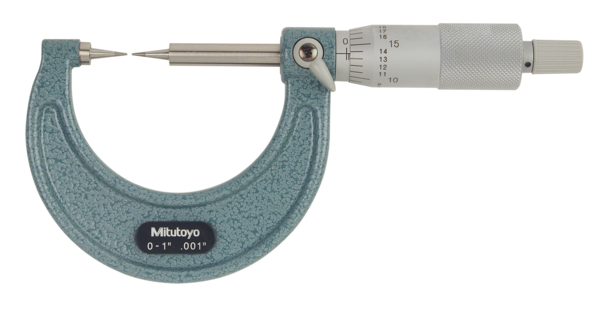

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	112-189
Measuring Range	0-1"
Accuracy	+/-.00015"
Unit of Measurement	Inch
Display Type	Analogue
Measuring Force	3-8N
Type	Point
Graduation on Thimble	.001"
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Both anvil and spindle Pointed 15° Carbide tipped
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,00015"
Measuring face:	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	205 g
