Point Micrometer with Carbide Tip 25-50mm, 15° Tip 112-166

Roll over image to zoom in Click on image to zoom

Point Micrometer with Carbide Tip 25-50mm, 15° Tip 112-166

Name: Point Micrometer with Carbide Tip 25-50mm, 15° Tip 112-166
Brand: Mitutoyo
SKU: 112-166
Price: 205.1 GBP
Availability: InStock

MitutoyoSKU: 112-166

All prices exclude VAT, which will be added at checkout.

Price:

£205.10 £293.00

Quantity:

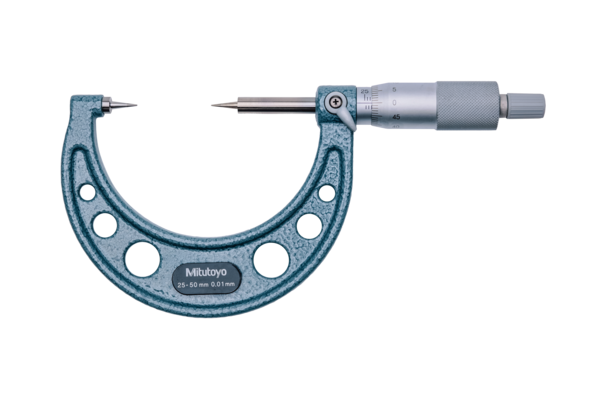

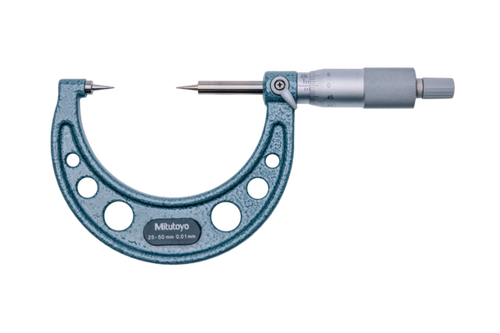

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	112-166
Measuring Ranges	25-50mm
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	3-8N
Type	Point
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Measuring face:	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N

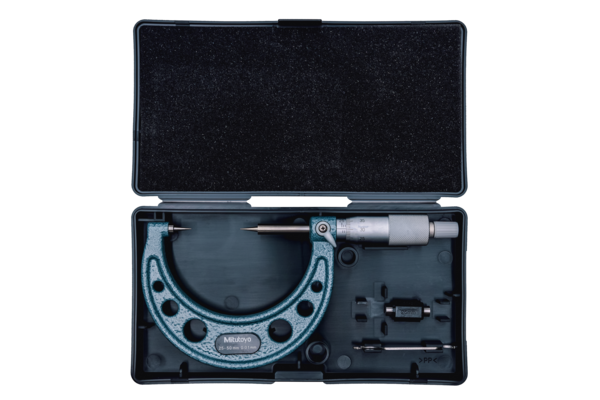

Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	305 g
