Point Micrometer with Hardened Tip 50-75mm, 15° Tip 112-155

Roll over image to zoom in Click on image to zoom

Point Micrometer with Hardened Tip 50-75mm, 15° Tip 112-155

Name: Point Micrometer with Hardened Tip 50-75mm, 15° Tip 112-155
Brand: Mitutoyo
SKU: 112-155
Price: 194.0 GBP
Availability: InStock

MitutoyoSKU: 112-155

List price: £266.00 Offer price: £194.00 Excluding VAT

Quantity:

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

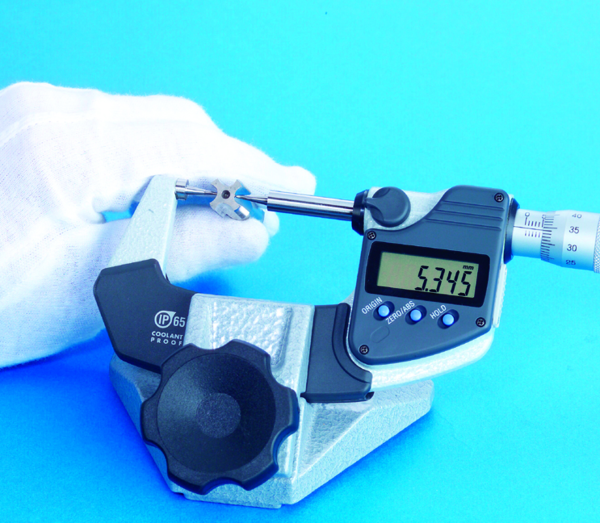

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Overview Technical Information Applications Videos & Documents

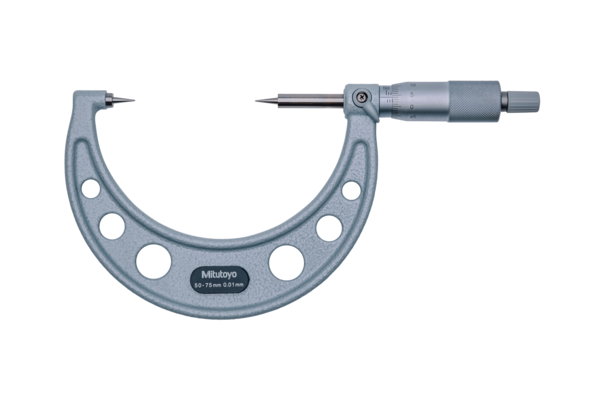

A Mitutoyo non-digital micrometer provided with pointed spindle and anvil to enable measurement within curved, slotted features, such as drilling-bit web thicknesses. A ratchet stop guarantees repeatable measurement.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Point Micrometer with Hardened Tip 50-75mm, 15° Tip 112-155 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog

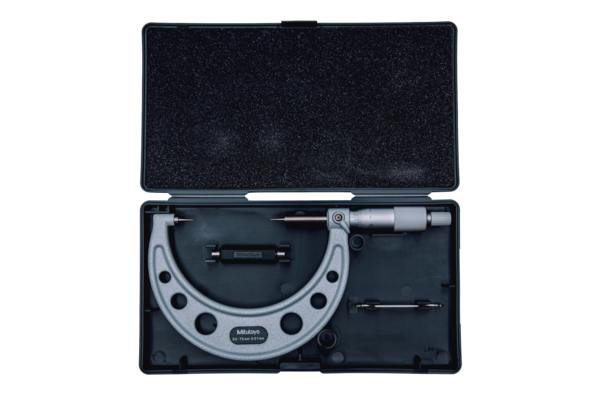

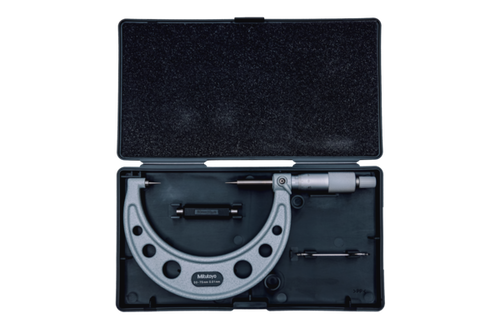

Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	50 - 75 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Measuring face:	Carbide pointed or hardened steel spindle and anvil, measuring point radius 0.3 mm
Tip:	15°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	370 g
