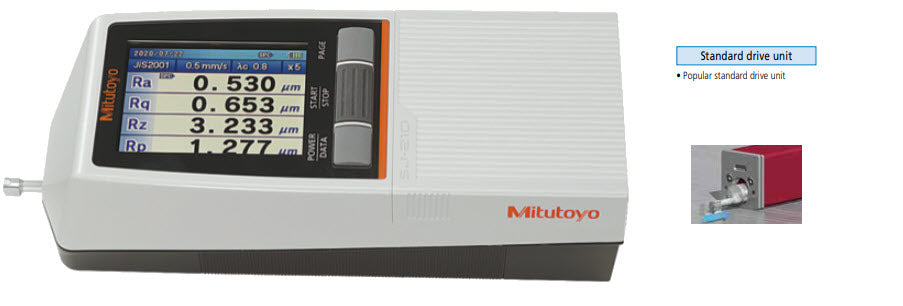

Mitutoyo 178-561-11E Surftest SJ-210 Surface Roughness Tester [inch/mm] “R2µm; .75mN” Range 16mm

Surface Roughness Tester Features

• Measuring range: 16 mm
• Traverse: 17.5 mm
• Measuring speed: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s
• Measuring method: Differential inductance
• Range: 360 µm
• Stylus: Diamond Tip
• Skid radius: 40 mm
• Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
• Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings
• Digital filter: Gauss, 2CR75, PC75
• Cut-off length: λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm λs : 2.5 µm; 8 µm
• Tolerance: Coloured upper / lower limit
• Power supply: AC adapter or rechargeable battery
• MPN: 178-561-11E
• Brand: Mitutoyo
