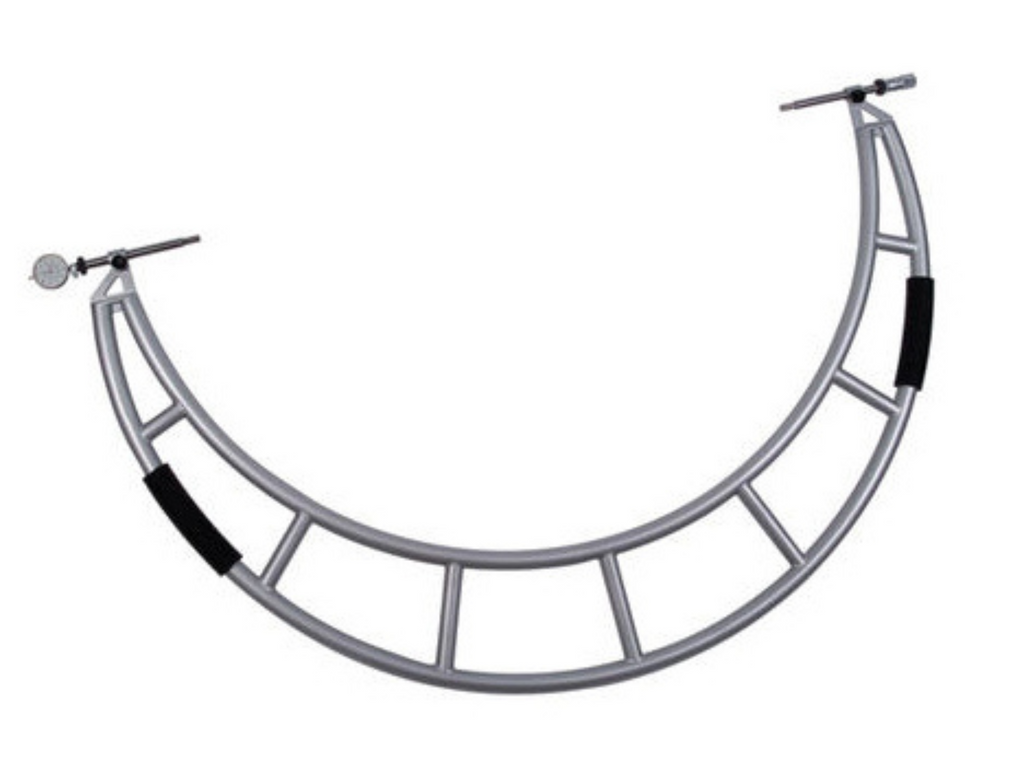

Steinmeyer Precision micrometer 220 with dial gauge
With measuring gauge and micrometer particularly suited for measuring thicknesses and lengths with large measuring ranges of up to 6 m
- With extra large measuring faces of up to 16 mm for secure measuring
- Movable anvil up to 500 mm for wide application ranges
- Large application range up to 6000 mm
- For better handling with individual centring aids
- For easier reading even with additional display PU 7d (for digital micrometer head)
Technical Data
- Error limit up to 500 mm according to DIN 863-3
- Graduation 0,01 mm
- Sindle pitch 1,0 mm
- Measuring range 25 mm
- Thimble diameter 25 mm
- Movable range anvil 100 / 250 / 500 mm
- Measuring surface diameter 8 mm / 12 mm / 16 mm
