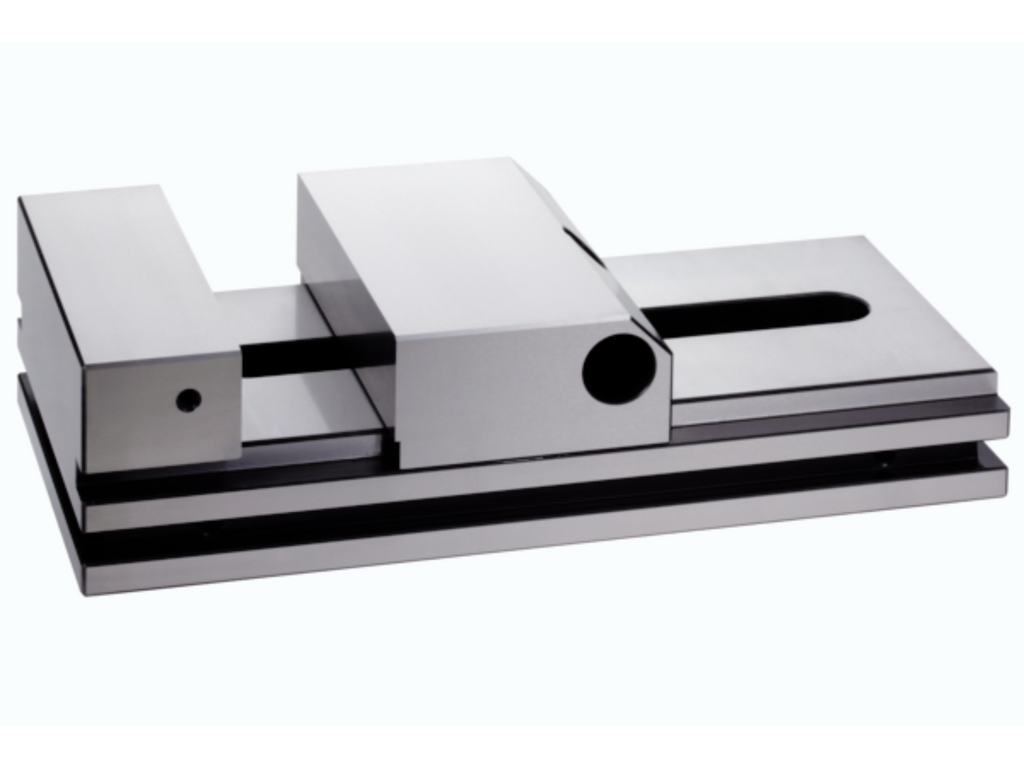

Mitutoyo Precision Vice is made of alloyed tool steel, hardened and precision ground, with horizontally ground prism in the movable jaws
Specification
Parallelism: 0.002 mm / 100 mm
Squareness: 0.005 mm / 100 mm
Mass: 28.7 Kg

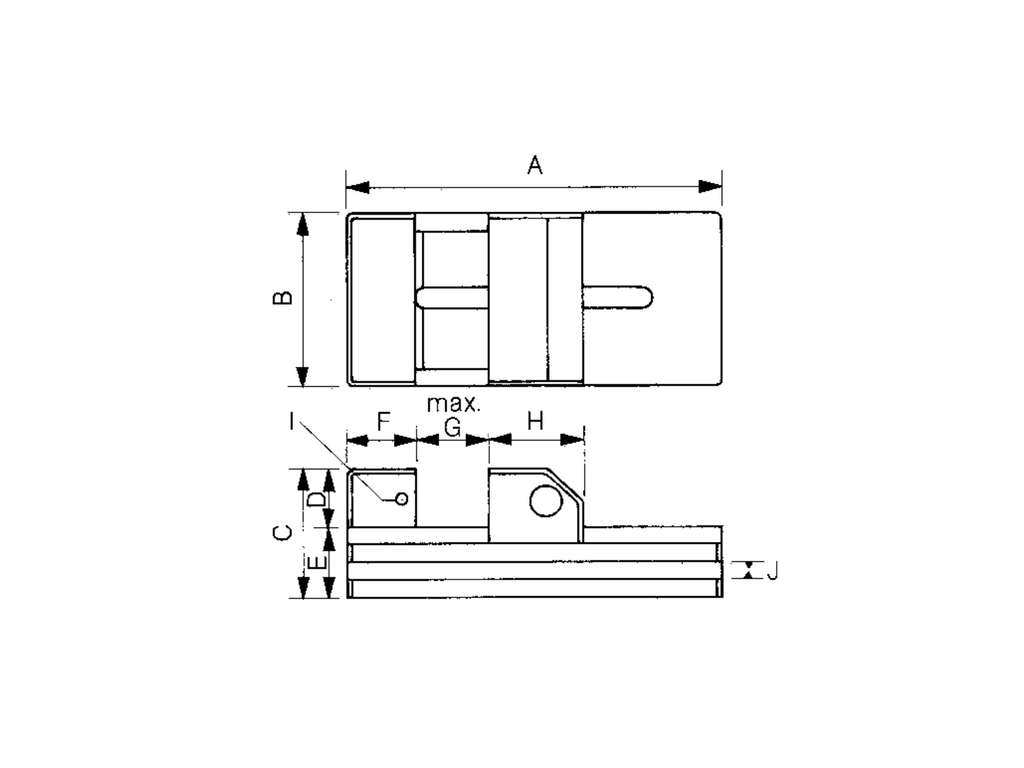

Dimensions
A:370 mmB:175 mm
C:95 mm
D:45 mm
E:50 mm
F:60 mm
G:200 mm
H:110 mm
I:M8 mm
JH x D:12 x 10 mm
