Radius Gauge 1/64–1/2” by 64ths & 1/32", 25 leaves 186-903

Mitutoyo; Radius Gauge

• Radius size is stamped on each gague leaf.
• Each leaf comprises an internal and an external radius gage of the same size.
• With locking clamp.

Each gage has five measuring locations.

186-903 Mitutoyo Radius Gages Set – 1/64″ – 1/2″

The Mitutoyo 186-903 Radius Gages Set – has the following specifications:

• Sizes: 1/64″ – 1/2″ by 64ths
• Number of leaves: 25

Features:

Radius Gauges are recommended for checking or laying out concave or convex radii. An individual gage for each dimension makes it possible to verify radius or fillet dimensions easier, faster and more accurately in machining, layout, inspection and patternmaking work. The measuring surfaces are precisely finished with smooth, accurate edges. Radius gages are available separately or in six sets. Each radius gauge has five measuring locations, and it is identified with its particular radius dimensions. The gauges have a satin or dull-chrome finish.

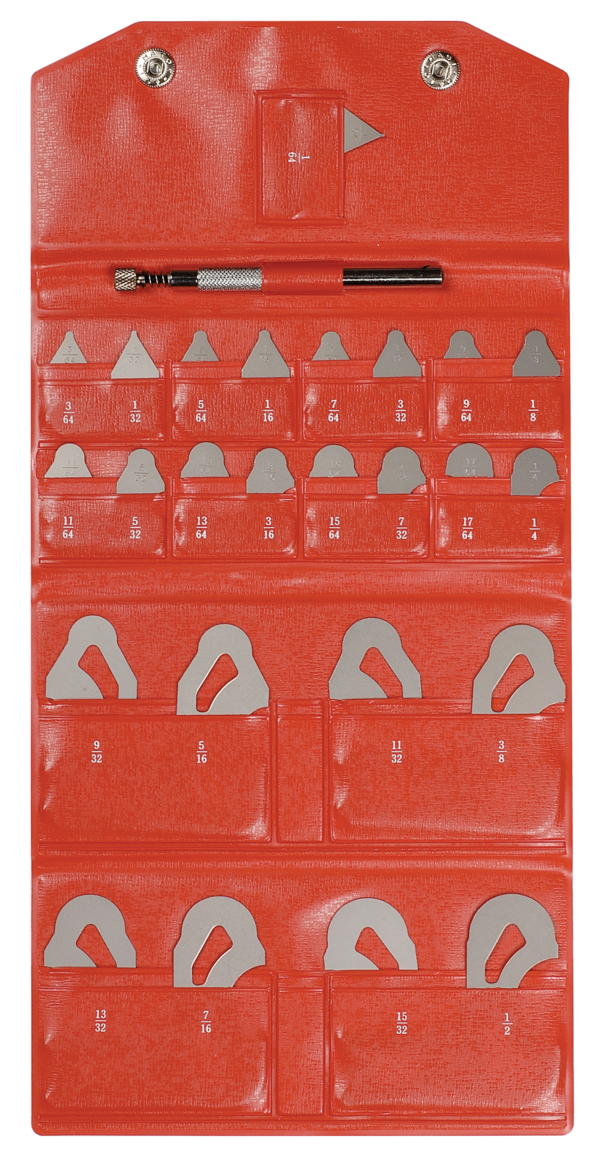

The holding cases, provided to protect the sets of radius gauges, have indexed pockets to facilitate the selection of the proper size gage. A 4″ long holder is furnished with Set No. 186-901 to make it possible to check radii in confined or hard-to-reach locations.
