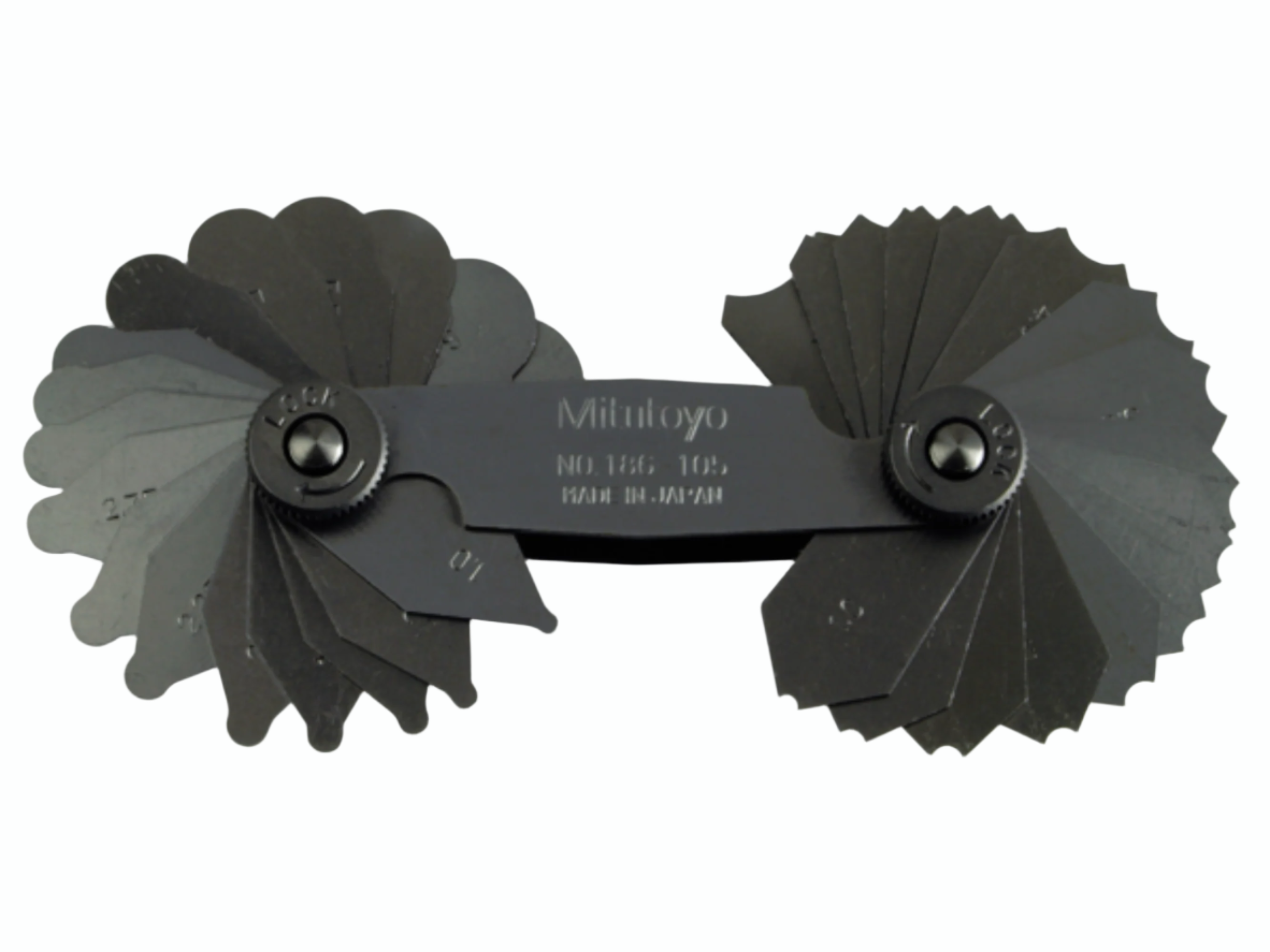

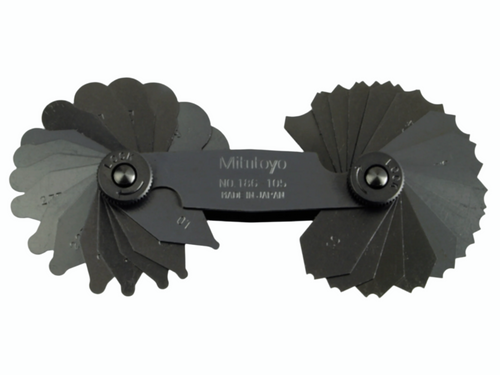

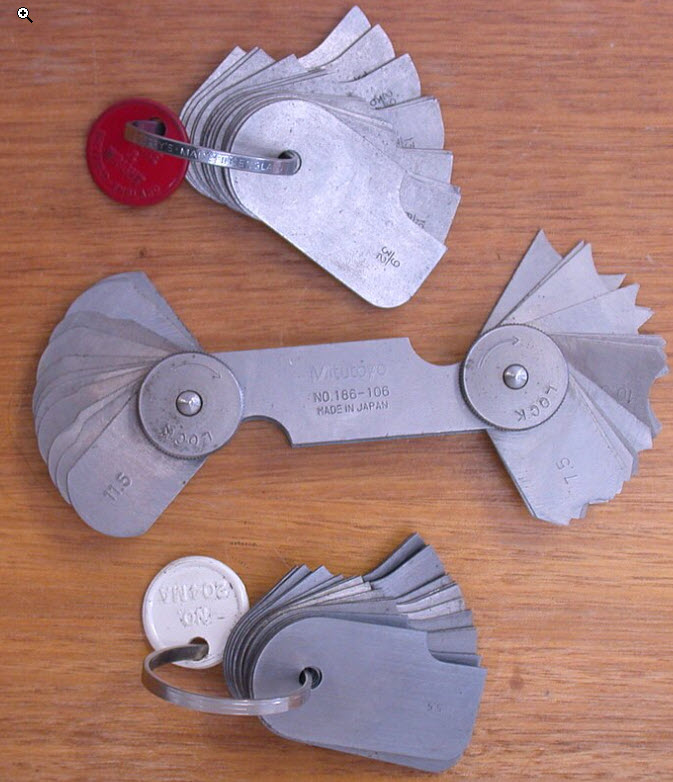

Radius Gauge 1-7mm, 34 Pairs 186-105

Mitutoyo; Radius Gauge

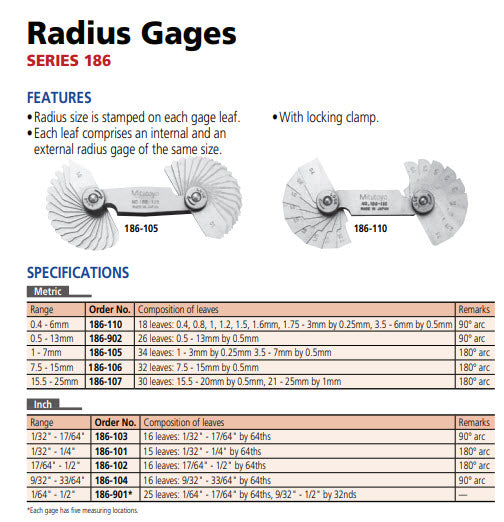

• Radius size is stamped on each gage leaf.
• Each leaf comprises an internal and an external radius gage of the same size.
• With locking clamp.

Each gage has five measuring locations.

Mitutoyo; Radius Gauge

• Radius size is stamped on each gage leaf.
• Each leaf comprises an internal and an external radius gage of the same size.
• With locking clamp.

Each gauge has five measuring locations.

A radius gauge, also known as a fillet gauge is a tool used to measure the radius of an object.

Radius gauges require a bright light behind the object to be measured. The gauge is placed against the edge to be checked and any light leakage between the blade and edge indicates a mismatch that requires correction.

A good set of gauges will offer both convex and concave sections, and allow for their application in awkward locations.

Every leaf has a different radius, for example with radius intervals of 0.25 mm or 0.5 mm. The material of the leaves is stainless steel. Each gauge is one of two types; either internal or external, which are used to check the radius of inner and outer surfaces, respectively.
