Circumference tapes IUB for internal circumference and Ø stainless spring steel Ø1100-1500/0,1mm(3450-4720)

Roll over image to zoom in Click on image to zoom

Circumference tapes IUB for internal circumference and Ø stainless spring steel Ø1100-1500/0,1mm(3450-4720)

Name: Circumference tapes IUB for internal circumference and Ø stainless spring steel Ø1100-1500/0,1mm(3450-4720)
Brand: Schwenk
SKU: 62300016
Price: 395.0 GBP
Availability: InStock

SchwenkSKU: 62300016

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£395.00

Quantity:

All prices exclude VAT, which will be added at checkout.

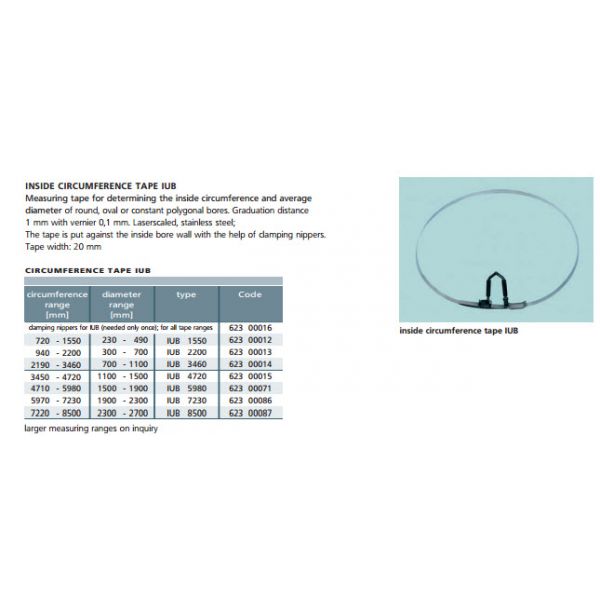

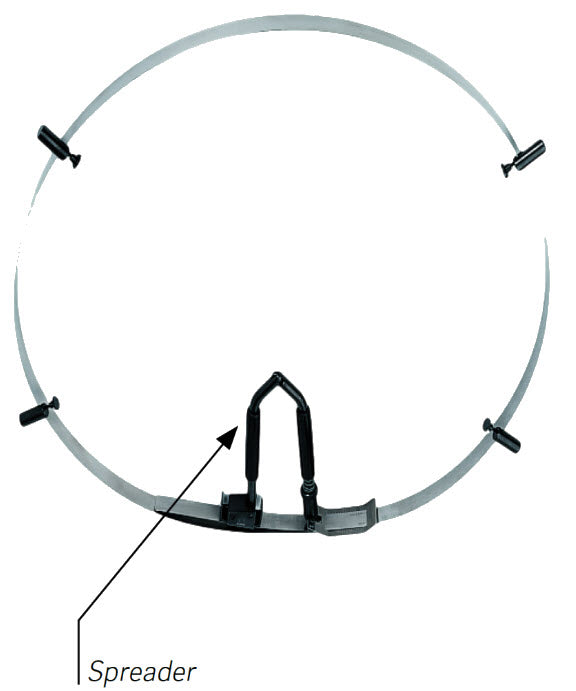

INSIDE CIRCUMFERENCE TAPE IUB Measuring tape for determining the inside circumference and average diameter of round, oval or constant polygonal bores. Graduation distance 1 mm with vernier 0,1 mm. Laser scaled, stainless steel; The tape is put against the inside bore wall with the help of clamping nippers. Tape width: 20 mm

Schwenk 62300015 INSIDE CIRCUMFERENCE TAPE IUB circumference type Code range 3450 - 4720mm diameter range [mm]1100 - 1500 Type IUB4720 ,clamping nippers for IUB (needed only once); for all tape ranges code 62300016

Type=IUB 4720, Material= Stainless Steel, Circumference range [mm]=3450 - 4720, Diameter range [mm]=1100 - 1500, Graduation distance =1 mm, Scaling= according to DIN 866, Vernier =0,1 mm, Remarks=laser scaled, Tape width=: 20 mm,

Product Information
Part Number	62300016
Measuring Ranges	1100-1500mm
Graduation	Graduation distance =1 mm Scaling= according to DIN 866; Vernier =0,1 mm
Type	Circumference Tape
