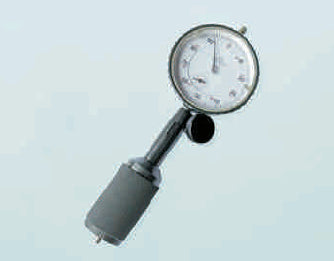

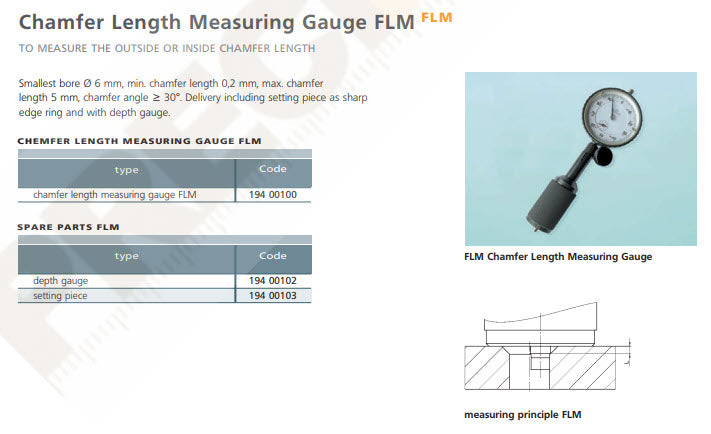

Schwenk 194 00100 Chamfer Length Measuring Gauge FLM Smallest bore Ø 6 mm, min. chamfer length 0,2 mm, max. chamfer length 5 mm, chamfer angle e 30°.

• Works standard
• To measure chamfer length of bore holes and outer diameters
• Measuring faces hardened steel
• For chamfer angle ≥ 30° and bore diameter ≥ 6mm

Delivered in a case including setting gauge and dial gauge

Operation:

• Beginning from the flat surface of the chamfer to be measured, the two-step measuring contact refers to the bore below the chamfer. The larger diameter of the measuring contact (+0.2mm) touches the chamfer – for 45° chamfer this corresponds to a preset of 0.1mm chamfer length.
