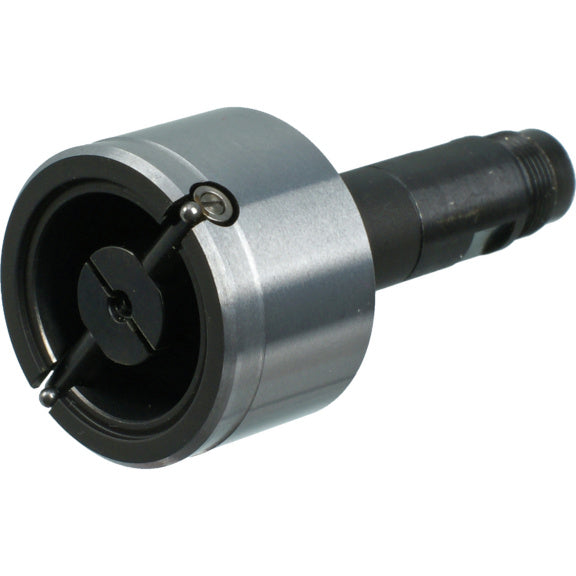

Schwenk 30000002 Indicating plug Gauge OD Range 2.6-6 mm h=6/10mm Ø, Through-hole Version, OD Measuring Sleeves - In Hardened Steel Design, Carbide contacts, Standard Version

Application

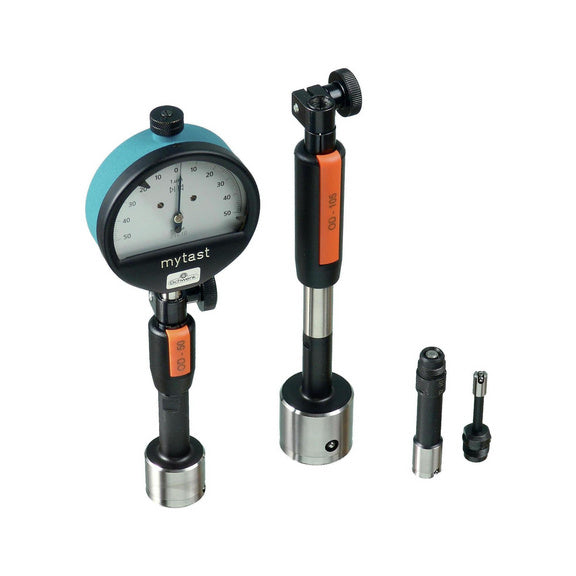

For quick comparison measurements of bores during series inspections.
The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

• Cemented carbide measuring contacts and measuring needles (wear-resistant)
• Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
• Version for blind holes with reduced face size

Advantage

• Easy to use
• Minimum measuring times
• Maximum measuring accuracy
• Robust and reliable
• Adapted to the desired bore diameter and tolerance
