Measuring sleeve with two radially movable contact pins, offset by 180° + OD holder + indication unit of choice. Standard measuring range s: 0,2 mm for Ø > 6 mm.
Standard design of the measuring sleeve: hardened steel, alternatively hard chromed, measuring contacts tungsten carbide.

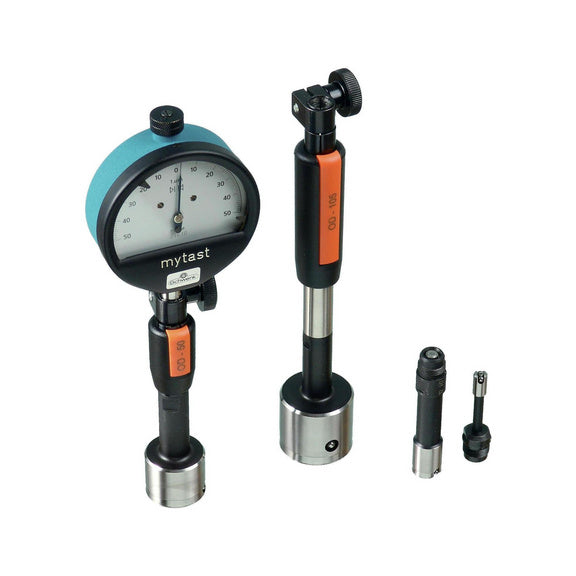

Indicating Plug Gauge OD
FOR MEASURING INTERNAL DIAMETERS, APPLICATION RANGE 2,0 - 800 MM
|
Brand |
SCHWENK |
|
Manufacturer Part Number |
30000015 |
|
Design of measuring contact |
Carbide |
|
Min./max. diameter of measuring range |
2.0-2.5 mm |
|
Measurement travel |
0.15 mm |
|
Front size |
1 mm |
|
Repeat accuracy |
1 µm |
|
Sleeve length |
17.5 mm |
|
Connection thread |
M11 x 0.75 |
|
Measuring depth max. |
17.5 mm |
Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005

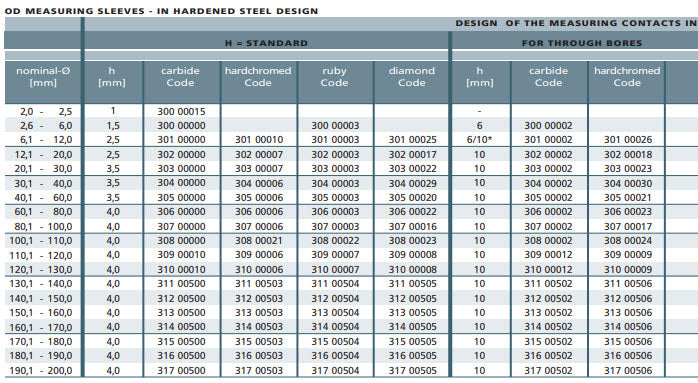

* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
